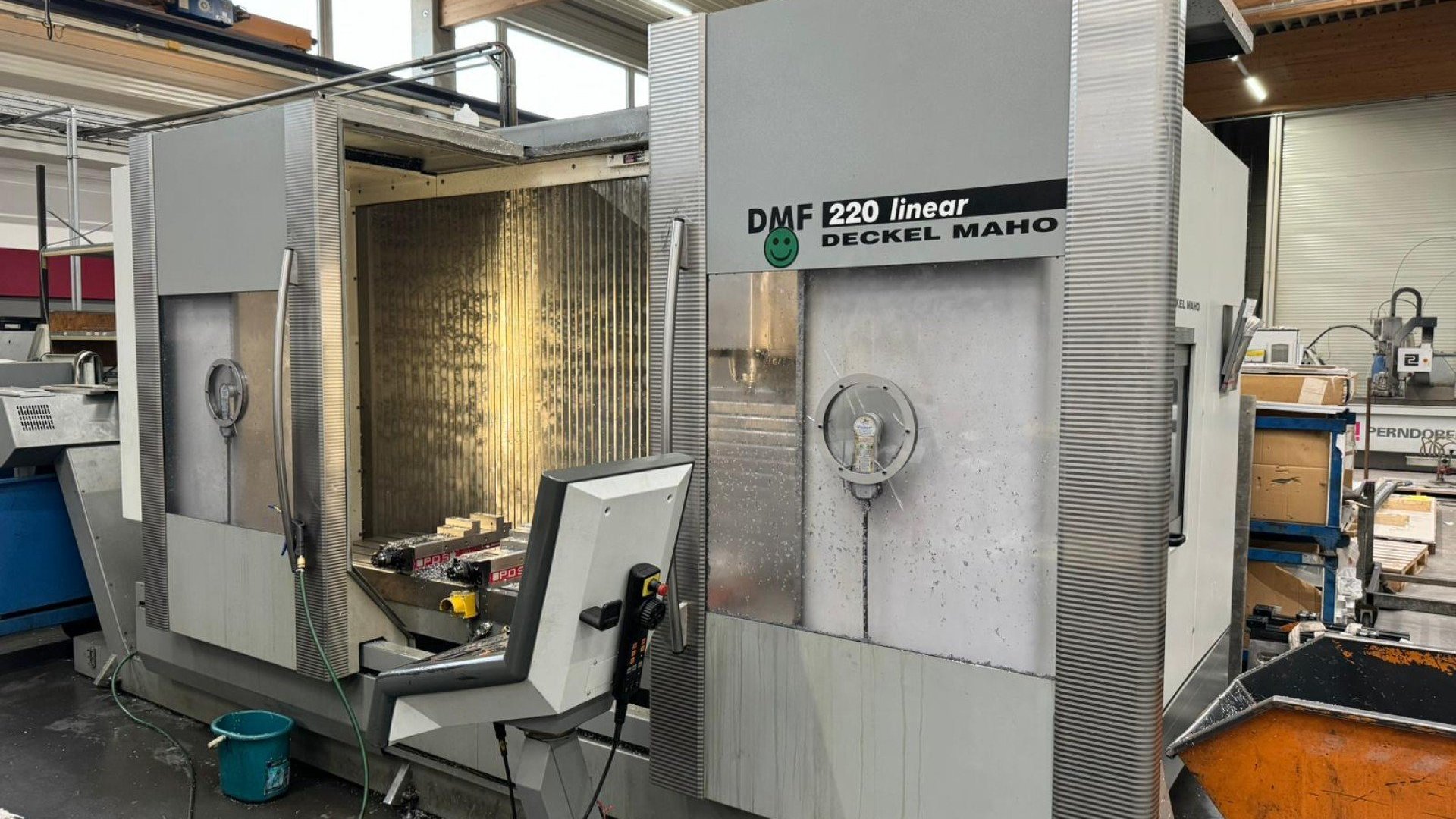

5-axis CNC machine (VMC)
DMG MORI - DMF 220 linear
MACH-ID 8527
Make: DMG MORI
Type: DMF 220 linear
Control: HeidenHain iTNC530
Year: 2006
Spindel hours 15.000 H
3D measuring taster
HR-410 handwheel
Chip conveyor


X - Travel: 2200mm
Y - Travel: 560mm
Z - Travel: 720mm
B - Axis: 90 Gr°
Table Length: 2600mm
Table Width: 600mm
Table load: 2200
Feed rate X-Axis: 100000mm/min.
Feed rate Y-Axis: 100000mm/min.
Feed rate Z-Axis: 100000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 35kW
Speeds / ranges: 12000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3 + 1
Length: 4700mm
Width: 3400mm
Height: 2700mm
Weight: 14000kg
