For Sale Listings

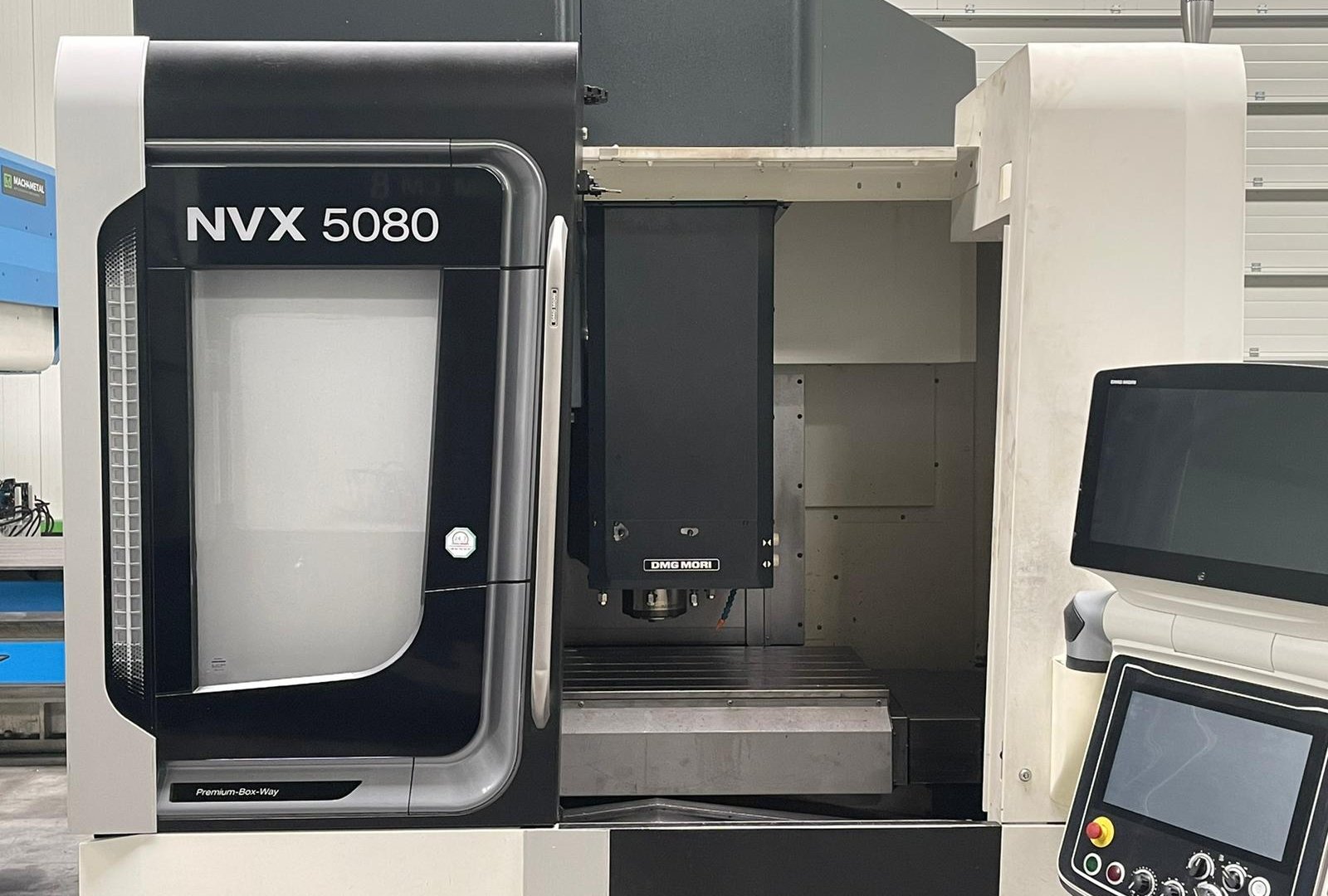

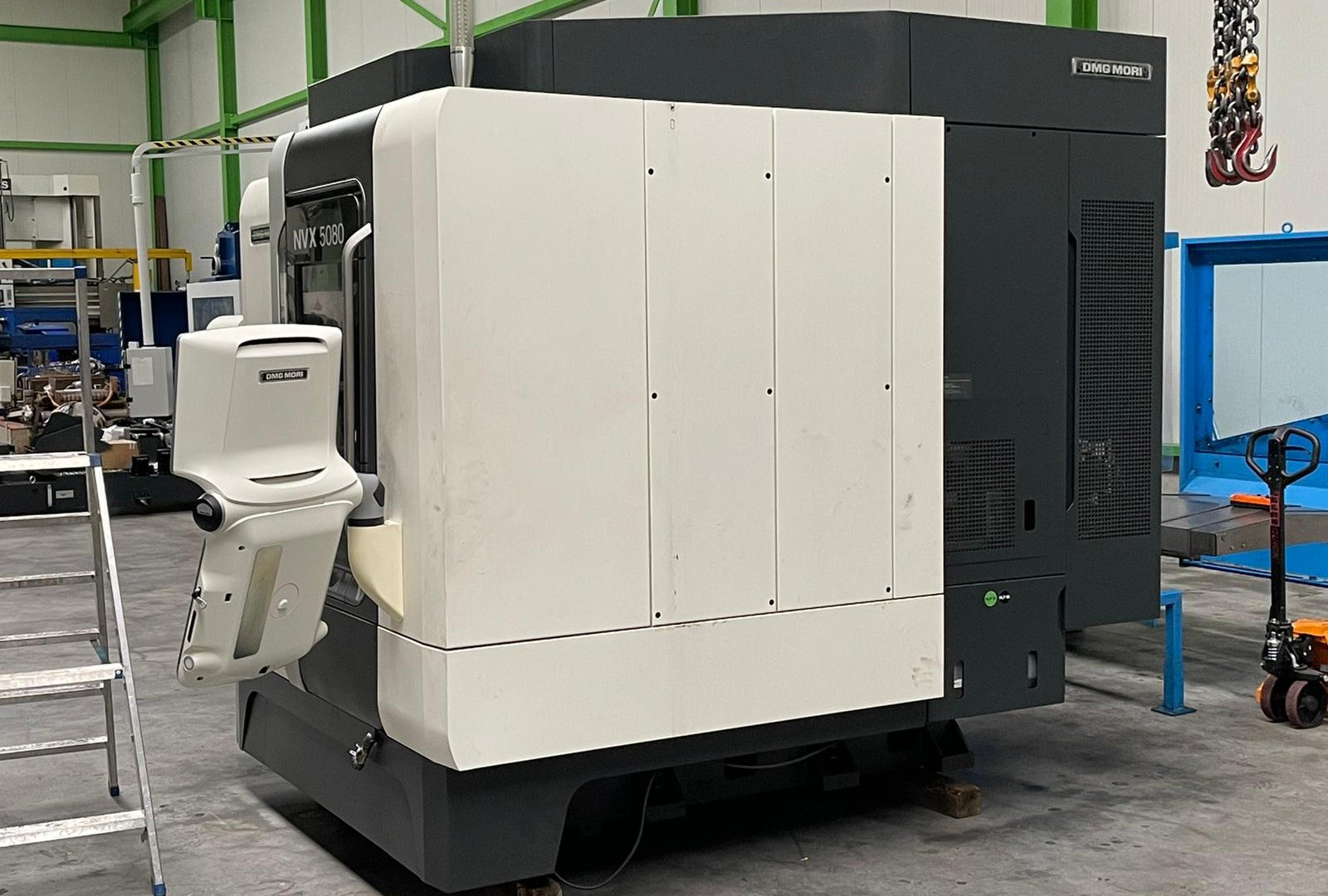

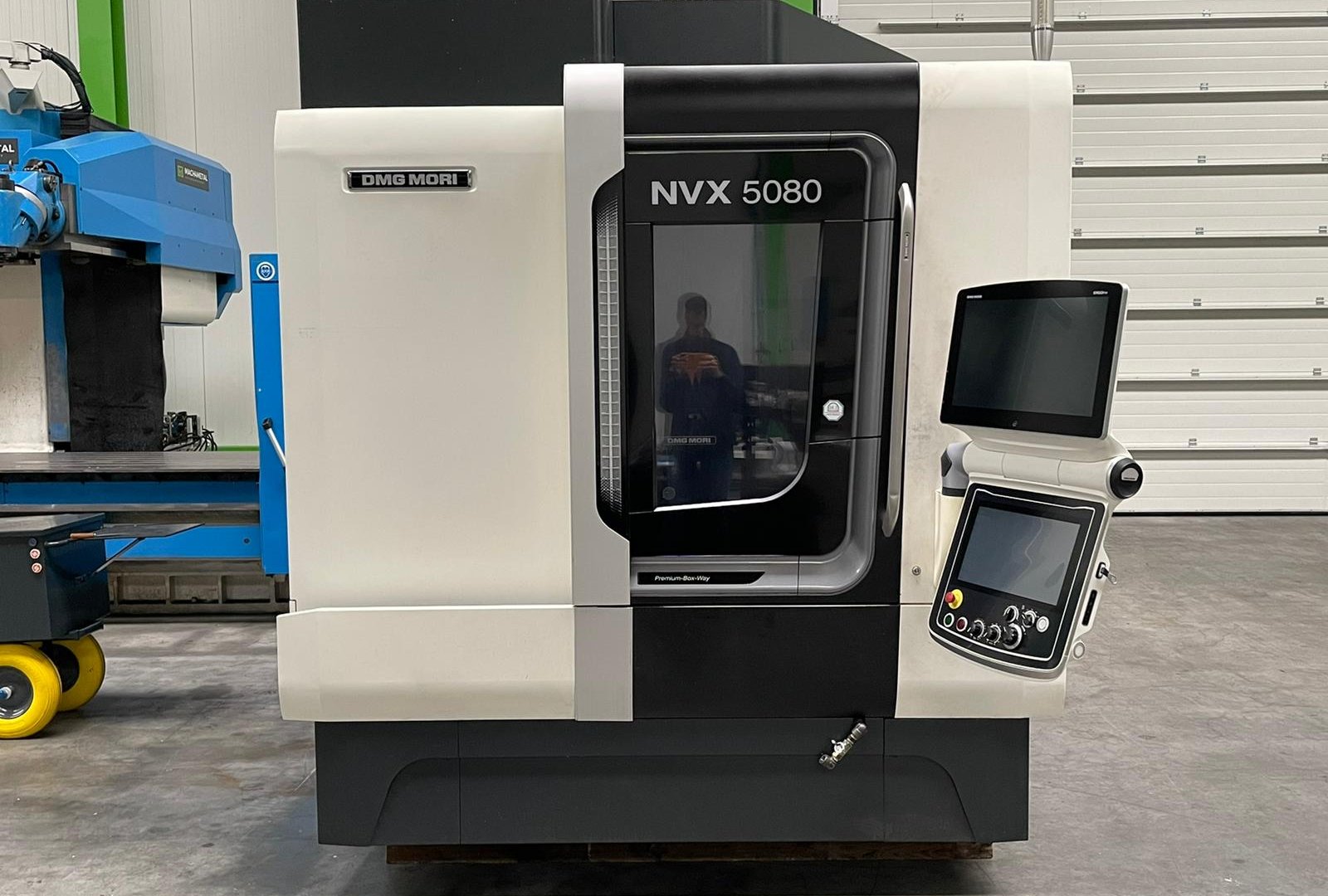

DMG, NVX 5080, VERTICAL, MACHINING CENTERS
  • Condition:Used
  • Category:MACHINING CENTERS
  • Type:VERTICAL
  • Manufacturer:DMG
  • Model:NVX 5080
  • YOM:2014
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:6605
  • Control:CNC
  • ID:AS29075
Description:
3-axis machining centre DMG MORI - NVX 5080 6605 = Mach4metal
Make: DMG MORI
Type: NVX 5080
Control: CELOS
YOP: 2014
Hours: 6400

X – Travel: 800mm
Y – Travel: 530mm
Z – Travel: 510mm

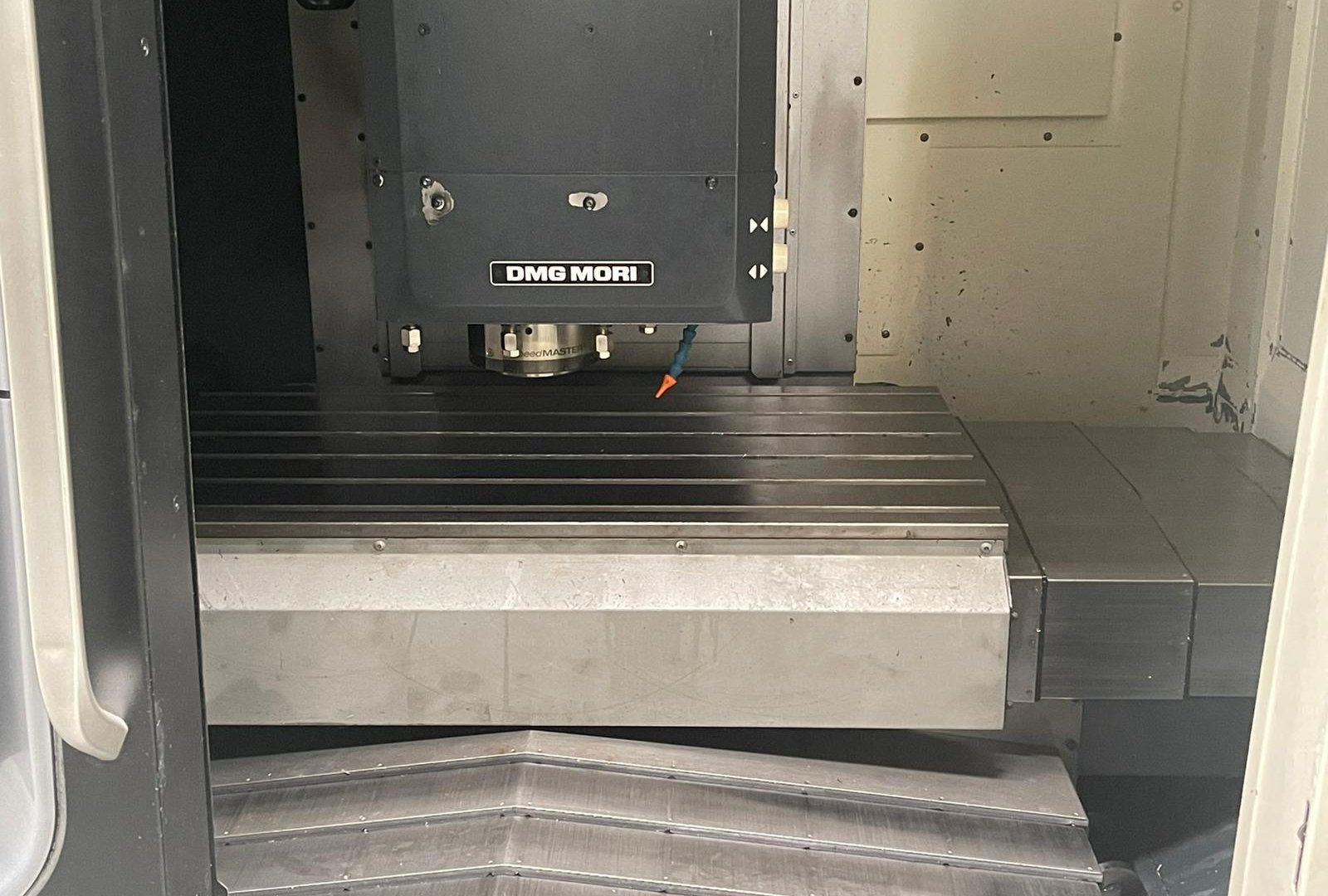

Table Length: 1.100mm
Table Width: 600mm
Table load: 1.000Kg
Feed rate X-Axis: 30.000mm/min.
Feed rate Y-Axis: 30.000mm/min.
Feed rate Z-Axis: 30.000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 15000Rpm
ATC / revolver: 40
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: yes

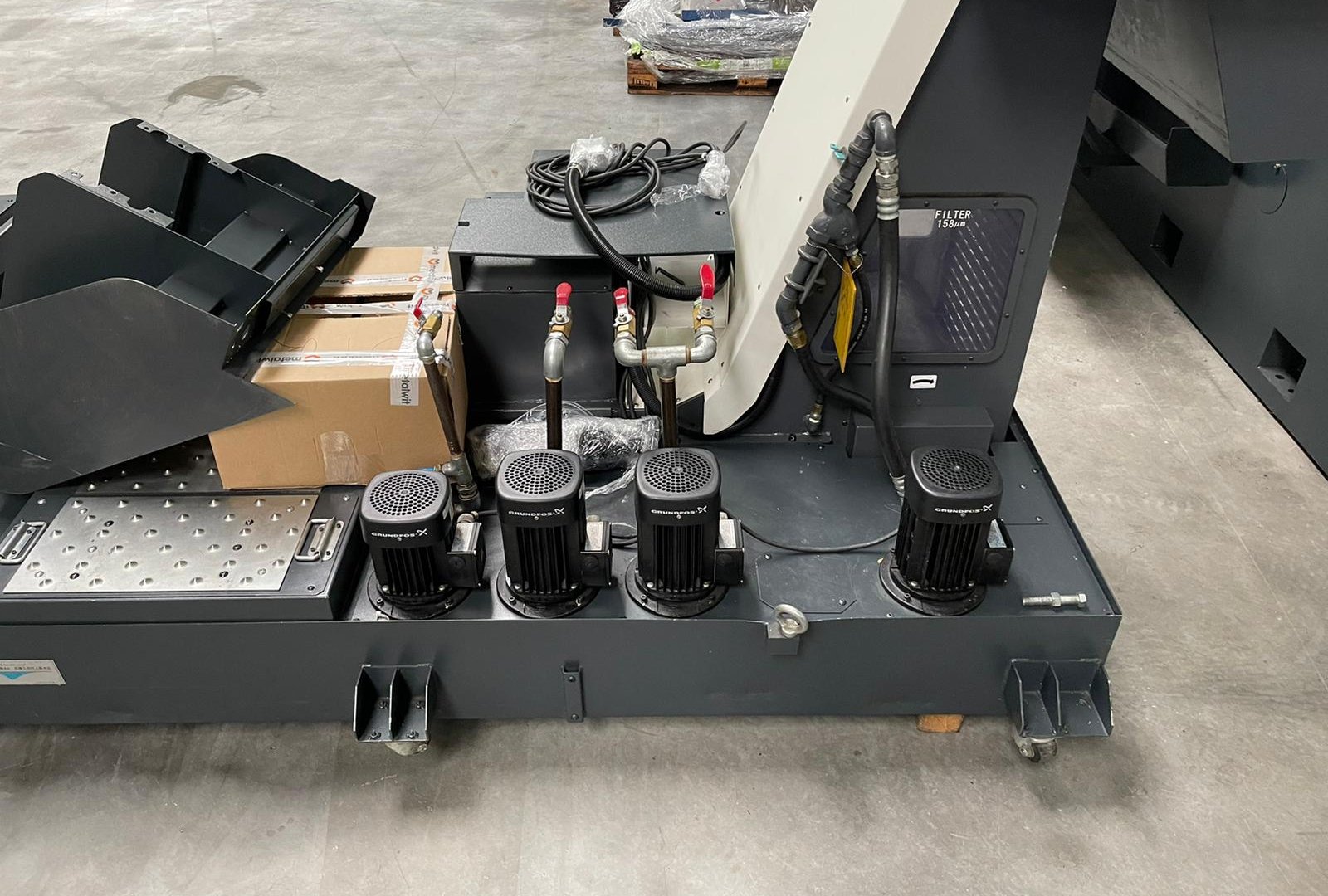

Coolantsystem: yes
Length: 3.500 mm
Width: 4.000 mm
Height: 2.600 mm
Weight: 6.350 kg
Specifications:
3-axis machining centre DMG MORI - NVX 5080 6605 = Mach4metal
Make: DMG MORI
Type: NVX 5080
Control: CELOS
YOP: 2014
Hours: 6400

X – Travel: 800mm
Y – Travel: 530mm
Z – Travel: 510mm
Table Length: 1.100mm
Table Width: 600mm
Table load: 1.000Kg
Feed rate X-Axis: 30.000mm/min.
Feed rate Y-Axis: 30.000mm/min.
Feed rate Z-Axis: 30.000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 15000Rpm
ATC / revolver: 40
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: yes
Coolantsystem: yes
Length: 3.500 mm
Width: 4.000 mm
Height: 2.600 mm
Weight: 6.350 kg
Dealer name:
Mach4Metal Netherlands, Babberich
