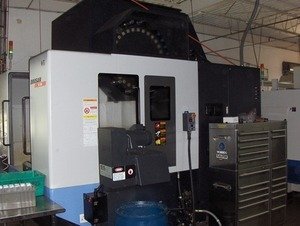

Doosan VC-500, 30"X, 20"Y, 22"Z, Fanuc 0iMD, Pallet Clamping, 40 ATC

General Specifications As Per Brochure:

Capacity:
X Axis Travel: 30.0"
Y axis travel: 20.3"
Z axis travel: 22.4"
Table type: Dual type pallet changer
Table indexing: 180 degrees
Table Size: 33.8" x 22"
Allowable table load: 770 pounds per side
Pallet Surface: (2 x 42) M16 x P2.0 Tap

Spindle:
Spindle nose to table top: 8.2" - 30.7"
Spindle center to column: 20.8"
Spindle taper: ISO No. 40
Spindle speed: 10,000 RPM
AC spindle motor: (30 minutes) 18.5/15kw (25HP)
Spindle torque: (30 minutes) 117.7 N.m (86.6)

Automatic Tool Changer:
Number of tools: 40
Tool shank: CAT 40
Maximum tool diameter: 3.15"
with empty adjacent pockets: 4.9"
Maximum tool length: 11.8"
Maximum tool weight: 17.6 lbs
Tool to tool change time: 1.3 secs.
Chip to chip change time: 4.3 secs.

Motion:
X and Y axis rapid traverse rate : 1575 IPM
Z axis rapid traverse rate: 1260 IPM
Maximum cutting feed rate: 630 IPM
Least command increment: .0001"
X, Y & Z-axis servomotors: 5.3/5.3/5.3 HP
X axis Ballscrew Diameter: 1.77"
Y & Z axis Ballscrew Diameter: 1.57"
Positioning accuracy (X,Y, and Z axis): +/- .005 (Full Stroke)

Repeatability (X,Y, and Z axis): +/- .002

Tank Capacity:
Coolant tank capacity: 110.gal.
Lubrication tank capacity: 0.35gal.
Hydraulic Tank Capacity: 3.4 gal.
Air Required Mpa: 80psi * 8.83CFM

General
Power: 36 KVA/95 AMP/@ 220V
Voltage: 205-235 Volts/3 Phase
Dimensions (Approx.): 133" x 109" x 124.8"
Weight (Approx.): 20,240 lbs.

Equipped With (Must Be Verified By Buyer):

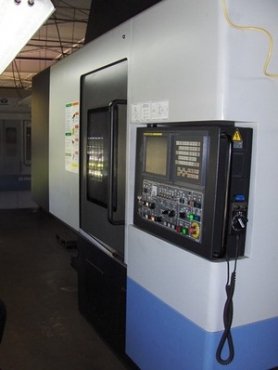

Fanuc 0iMD Control
High speed 10,000 RPM precision spindle
Powerful 18.5/15kW (25 hp) spindle motor
Cartridge spindle design
High Precision spindle with four angular contact bearings 70mm ID, ceramic
ball type
Air thru - spindle
Spindle Orientation
Spindle chiller
230 PSI through the spindle coolant
Rigid tapping
Custom Macro B (User Definable)
Cam Type Double Arm ATC 40 Tools Fast 1.3 second tool change

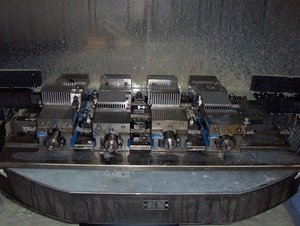

Automatic 5.5 second indexing with (2) Tapped pallets
Hydraulic pallet clamping
Portable Manual Pulse Generator
Program and data protection key switch
90 degree, Swiveling operator console
Traveling column design X,Y
One piece Meehanite cast iron bed
Large Linear Roller Guides
Servomotors drives mounted directly to the oversized ballscrews
Double Pre-Tensioned Ballscrews
Fast 40m/min (1,575 IPM) X,Y and 32m/min (1,260 IPM) Z rapid traverse
Metered piston distributor lubrication
Telescopic way covers
Fully enclosed work area (including top)
Flood coolant with large separate coolant tank
Work light
3 color tower signal light
