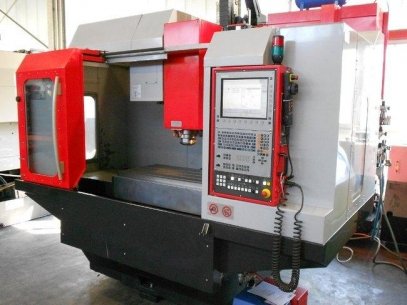

Set-up measurements LxWxH [mm] 3940 x 3 200 x 3 .269 mm
Speed range [1/min] 12.000
X-[mm] 1200
Y-[mm] 600
Z-[mm] 600
Weight 7t

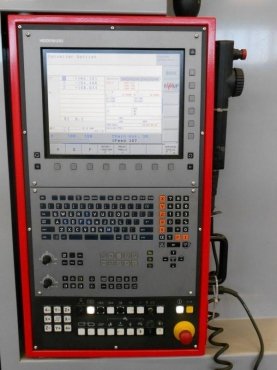

Control: Heidenhain iTNC 530
technical details:
drive power 35 kW
tool changer for 30 tools
tool holder ISO 40 DIN 69871

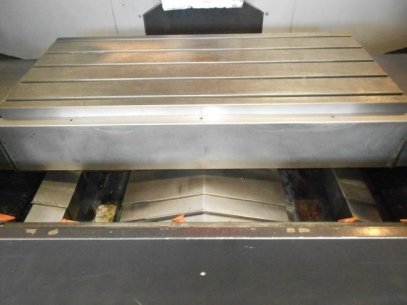

clamping surface 1.300 x 620 mm
rapid traverse X/Y/Z 40 m/min
turning speed 50 - 12.000 r/min
configuration / equipment:
motor spindle cooled by water
glas measuring rods in X/Y/Z axis

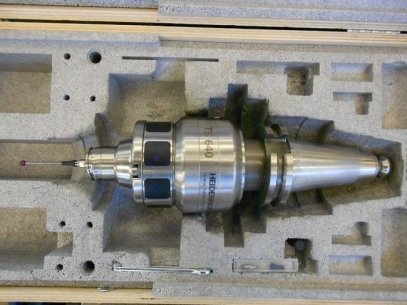

infrared measuring sensor comp. Heidenhain TS 640
washing pistol
electr. handwheel
coolant through spindle 15 bar
high pressure air trough spindle 6 bar

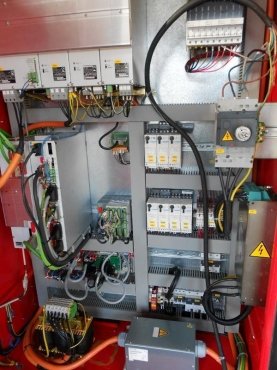

air handling unit for control cabinet
chip conveyor
