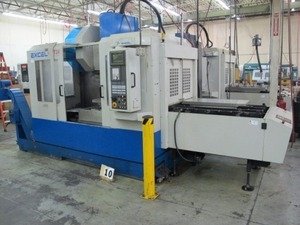

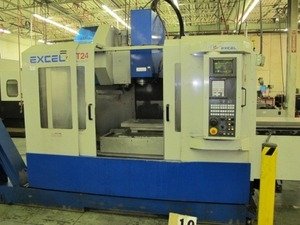

EXCEL PMC-10T24, 39.7"X, 20.08"Y, 22.05"Z, 1998, Fanuc 21M, Pallet Changer

General Specifications As Per Brochure:

Machine Control: Fanuc 21-M
Table Size: 43.31" x 19.29"
Machine Travels (X/Y/Z): 39.37" x 20.08" x 22.05"
Spindle Taper: BT 40
Spindle Speeds: 8,000 RPM
Rapid Traverse Rate (X/Y/Z): 944 IPM
Maximum Cutting Feed Rate: .004-157 IPM
Tool Changer Style: Side-Mount Twin-Arm
Tool Changer Capacity: 24 Position
Max Tool Length: 11.81"
Max Tool weight: 13.2 Lbs
Spindle Drive: 14.7 HP
Electrics: 220 Volt, 3 Phase
Dimensions (Approx.): 116" x 95" x 108"
Weight (Approx.): 13,500 lbs.
(2) Coolant Tanks: 30"x 72" x 15"
Chip Conveyor: 164" x 30" x 61" (750 lbs)
Pallet Changer: 68" x 47" x 45" (1700 lbs)

Equipped With (Must Be Verified By Buyer):

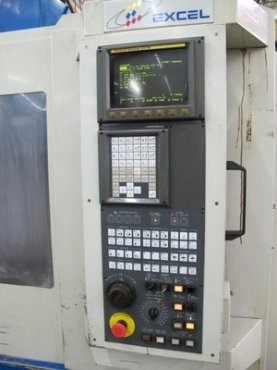

Fanuc 21M CNC Control
Thru Spindle Coolant
Turbo Lift-UP Chip Conveyor

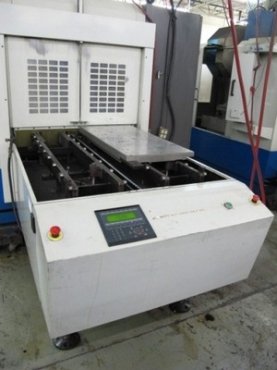

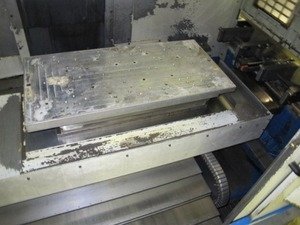

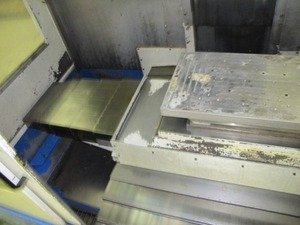

Midaco Model 40 Servo Automatic Pallet Changer with (2) 40" x 19" Pallets

Pallet Surface is 7" Above Table Work Surface
RS232 Port
Manuals and Schematics
