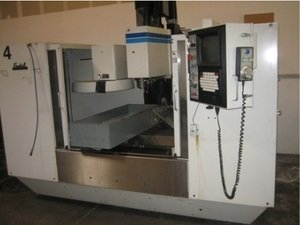

40"X, 20"Y, 20"Z, Fadal VMC-4020, 1997, Fadal 88HS, Rigid Tap, 15,000rpm

General Specifications As Per Brochure:

Table Size: 48" x 20"
Floor To Table Surface: 32"
T-Slots (no. x width x span): 5 x .687" x 3.75"
Cutting Feed Rate (x/y/z): .01 - 400 ipm (600" at 150%)
Rapid Feed Rate (x/y/z): 900 ipm (x/y), 700 ipm (z)
Maximum Weight on Table: 3,641 lbs
Ball Screw Size: 1.58" dia. (x/y/z)
Longitudinal (X axis): 40"
Cross (Y axis): 20"
Vertical (Z axis): 20"
Spindle Nose to Table: 4" - 24"
Spindle Center to Column Ways: 20"
Main Motor - Automatic 2 Speed
Vector Drive: 22.5 hp (peak), 16.8 kw
Torque (peak): 220 ft-lbs
Spindle Speed: 10 - 15,000 RPM
Spindle Orientation: Electromechanical
Spindle Taper: no. 40
ATC, Number of Tools: 21
ATC, Tool Selection: random/bi-directional
Maximum Tool Diameter: 3"
(Without Adjacent Tools): 6"
Maximum Tool Length: 15"
Maximum Tool Weight: 15 lbs
Machine Width x depth: 116" w x 87" d
Machine Maximum height: 104" h
Machine Weight: 10,500 lbs
Air Pressure Requirement
(Momentary):` 80 psi, 15 scfm
Power Requirement (3 ph): 40/45 amps

Equipped With (Must Be Verified By Buyer):

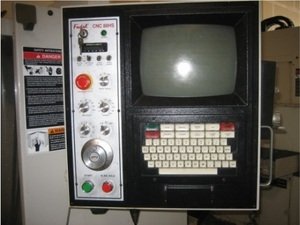

Fadal CNC 88HS Control
Cat 40 Spindle
Rigid Tapping
MPG
TS-27 Tool setting probe

116" x 87" x 104"

10,500
