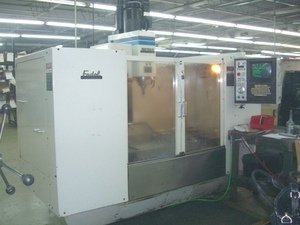

Graphic Display, Fadal VH-65 Fourth Axis Rotary Table, Rigid Tapping, Heavy Duty Box Way Construction

Travel: X-Axis 40"
Y-Axis 20"
Z-Axis 20"
Table Size 47.94" x 20"
Spindle Speed 75 - 10,000 RPM
Spindle Taper Cat 40
Spindle Nose to Table Top 4" - 24"
Spindle Torque 160 ft. lbs.
Spindle Motor 15 HP
Tools 21
Table Load Capacity 1500 lbs.
Rapid Traverse Rates (X & Y / Z) 700 / 600 IPM
Max Tool Diameter 3" / 6"
Max Tool Length 15"
Max Tool Weight 15 lbs.
Machine Dimensions (L x W x H) 116" x 87" x 95"
Machine Weight 10,100 lbs.

FEATURES:
FADAL 88HS CNC CONTROL
12" Monochrome CRT
Graphic Display
Fadal VH-65 Fourth Axis Rotary Table
Rigid Tapping
Heavy Duty Box Way Construction

116 x 87 x 95

10100
