Fadal 4020HT, 1995, Extended Z(28"), 30 ATC, CAT40, 7,500 RPM, 2 Station Pallet

General Specifications:(as per brochure)
Table size: 48" X 20"
X-axis: 40"
Y-axis: 20"
Z-axis: 28"
Spindle speeds: 7,500 RPM
Spindle taper: CAY40
Motor: 30HP
Tool changer: 30 ATC
Approx. weight: 10,000 lbs
Equipped with:(must be verified by buyer):

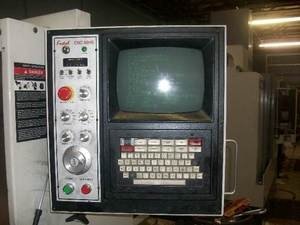

Fadal 88-HS control
Rigid Tap
X/Y axis scales

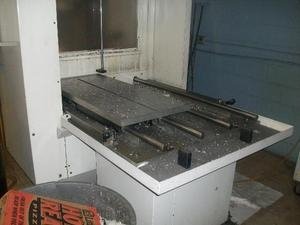

2 station pallet changer
High speed cpu
Graphics
Servo turret
Mist collector
4th axis prewire

Dimensions:
Machine: 127" x 102" x 106" 10,100 lbs
Chip Conveyor: 12' x 2' x 5' 150 lbs
Chip Pan: 50" x 19" x 19" 100 lbs

13000 (LBS)
