Description:

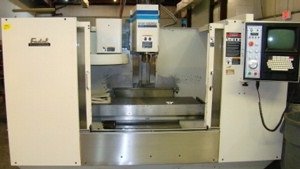

50"X, 20"Y, 20"Z, FADAL, No. VMC 5020A, 40 Taper, 30 ATC, CNC88 control, 1998, high torque, clnt screws, rigid tap.
Specifications:

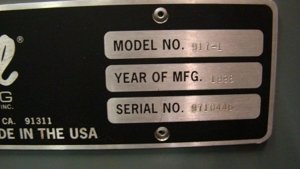

Model number VMC 5020A
Year of manufacture 1998
SPECIFICATIONS:

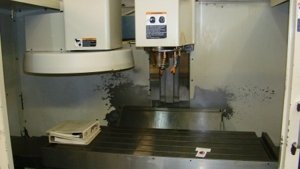

Table size 20" X 57"
Maximum long. X-axis 50"
Cross travel, Y-axis 20"
Vertical travel, z-axis 20"
Table load capacity 1,500 lbs
Spindle drive motor 15 HP
Spindle speed range min - max 75 to 7,500 RPM
Spindle taper CAT #40
Rapid traverse rate 500 ipm
Tool changer number of tools 30
Tool selection Random/Bi-Electrics 230/440/3/60 HZ
Machine net weight 11,500 lbs
Overall dimensions (L x W x H) 87" x 116" x 95"
EQUIPPED WITH:

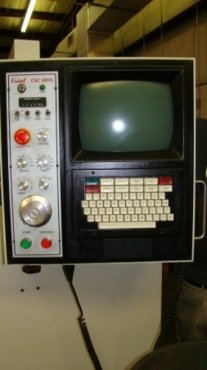

Fadal CNC88 control, 4th axis pre-wire, Flood coolant system,
Build in work light, Automatic way lubrication system, Rigid tapping
High torque, RS232, Servo motor coolant system, Full splash enclosure
Remote pendant control

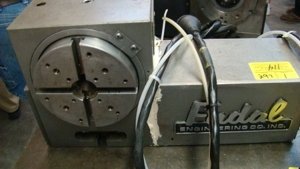

FADAL model VH65 4th axis table available for $5000.00.
Dimensions:
87" X 116" X 95"
Weight:
11,500 lbs
