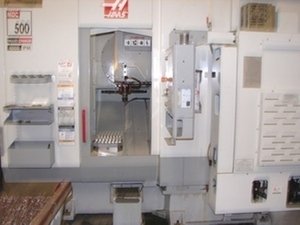

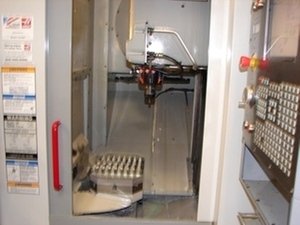

Haas MDC-500, 20"X 14"Y 20"Z, 2005, Haas Control, 4500 RPM, 20 HP, 24 Tools

General Specifications As Per Brochure

CNC Control: Haas
Travel:
X-Axis: 20"
Y-Axis: 14"
Z-Axis: 20"
Table Size: 20" x 12.75" (2)
Spindle Speed: 7500 RPM
Spindle Taper: Cat 40
Spindle Motor: 20 HP
Spindle Torque: 75 ft. lbs.
Tools: 24
Tool Change Time (T - T / C - C): 2.2 / 4.8 Seconds
Table Load Capacity: 700 lbs.
Rapid Traverse Rates: 1000 IPM
Max Tool Diameter: 3"
Max Tool Length: 12"
Max Tool Weight: 12 lbs.
Machine Dimensions (L x W x H): 143" x 134" x 113"
Machine Weight: 14,000 lbs.
Equipped with (must be verified by buyer):

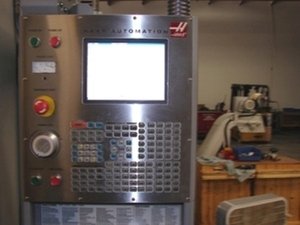

10" Color LCD
3.5" Floppy Disc Drive

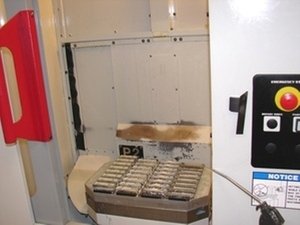

Auto Two Pallet Changer (Spin Type)
24 Position Side Mount Tool Changer
Programmable Coolant Nozzle
Rigid Tapping
Brushless AC Servo Motors
Green Work Indication Light
1000 IPM Rapid Traverse Rates
Tool Shelves
Hours: 1300

80 x 78 x 113"

14000 lb
