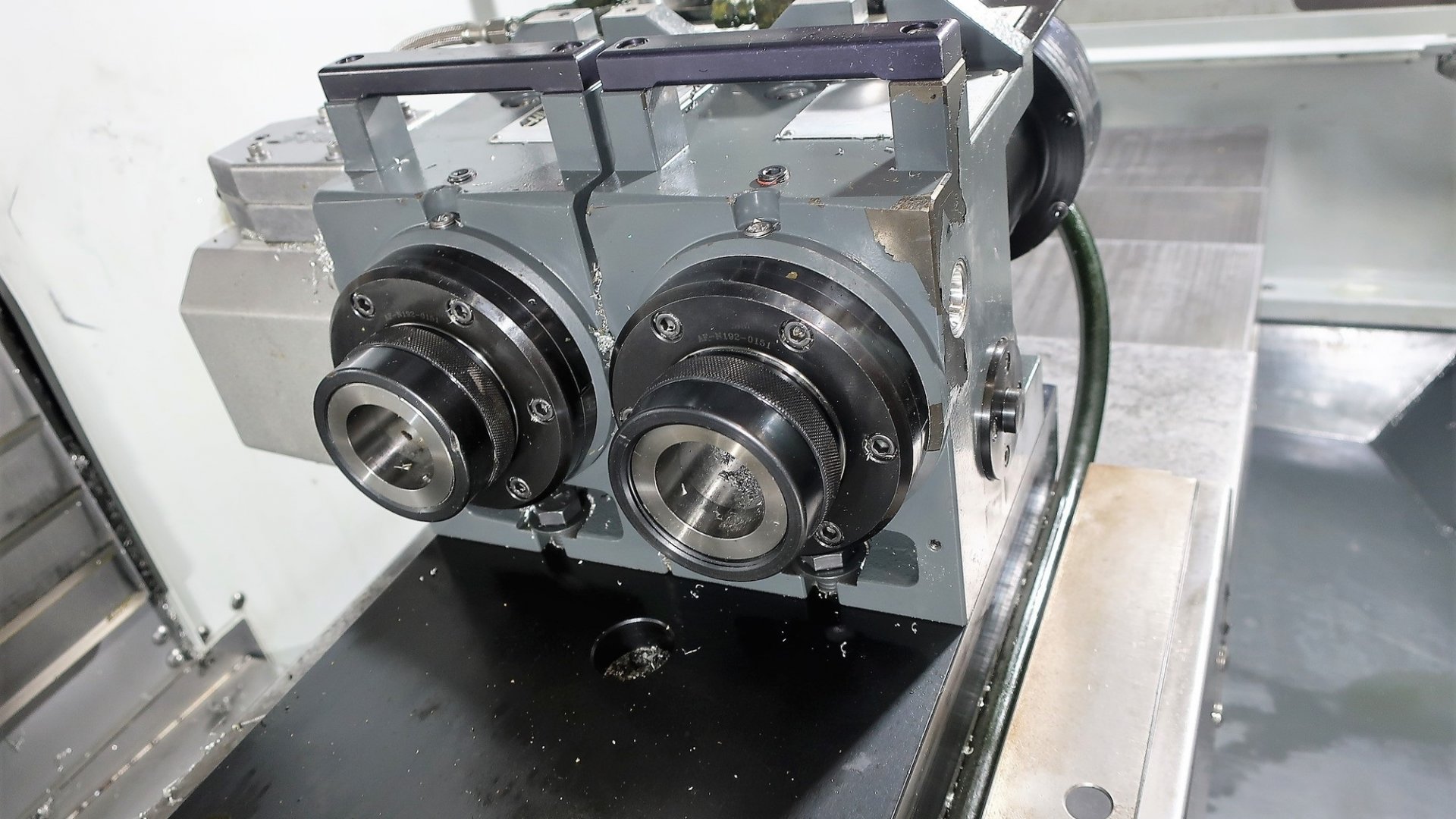

HAAS VF-2SS CNC 4-Axis Vertical Machining Centers
Year of manufacture: 2020
Specifications:
TRAVELS:
X Axis: 30.0 in / 762 mm
Y Axis: 16.0 in / 406 mm
Z Axis: 20.0 in / 508 mm
Spindle Nose to Table (~ max): 24.0 in / 610 mm
Spindle Nose to Table (~ min): 4.0 in / 102 mm
SPINDLE:
Max Rating: 30.0 hp / 22.4 kW
Max Speed: 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper | BT40 |
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid
TABLE:
Length: 36.0 in / 914 mm
Width: 14.0 in / 356 mm
T-Slot Width: 0.626 in to 0.630 in / 15.90 mm to 16.00 mm
T-Slot Center Distance: 4.92 in / 125 mm
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed) 1500 lb / 680 kg
FEEDRATES:
Max Cutting: 833 ipm / 21.2 m/min
Rapids on X: 1400 ipm / 35.6 m/min
Rapids on Y: 1400 ipm / 35.6 m/min
Rapids on Z: 1400 ipm / 35.6 m/min
AXIS MOTORS:
Max Thrust X: 1995 lbf / 8874 N
Max Thrust Y: 1995 lbf / 8874 N
Max Thrust Z: 3085 lbf / 13723 N
TOOL CHANGER:
Type SMTC
Capacity 30+1
Max Tool Diameter (full): 2.5 in / 64 mm
Max Tool Diameter (adjacent empty): 5.0 in / 127 mm
Max Tool Length (from gage line): 11 in / 279 mm
Max Tool Weight: 12 lb / 5.4 kg
Tool-to-Tool (avg): 1.8 s
Chip-to-Chip (avg): 2.4 s
GENERAL:
Coolant Capacity: 55 gal / 208 L
AIR REQUIREMENTS:
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi / 5.5 bar

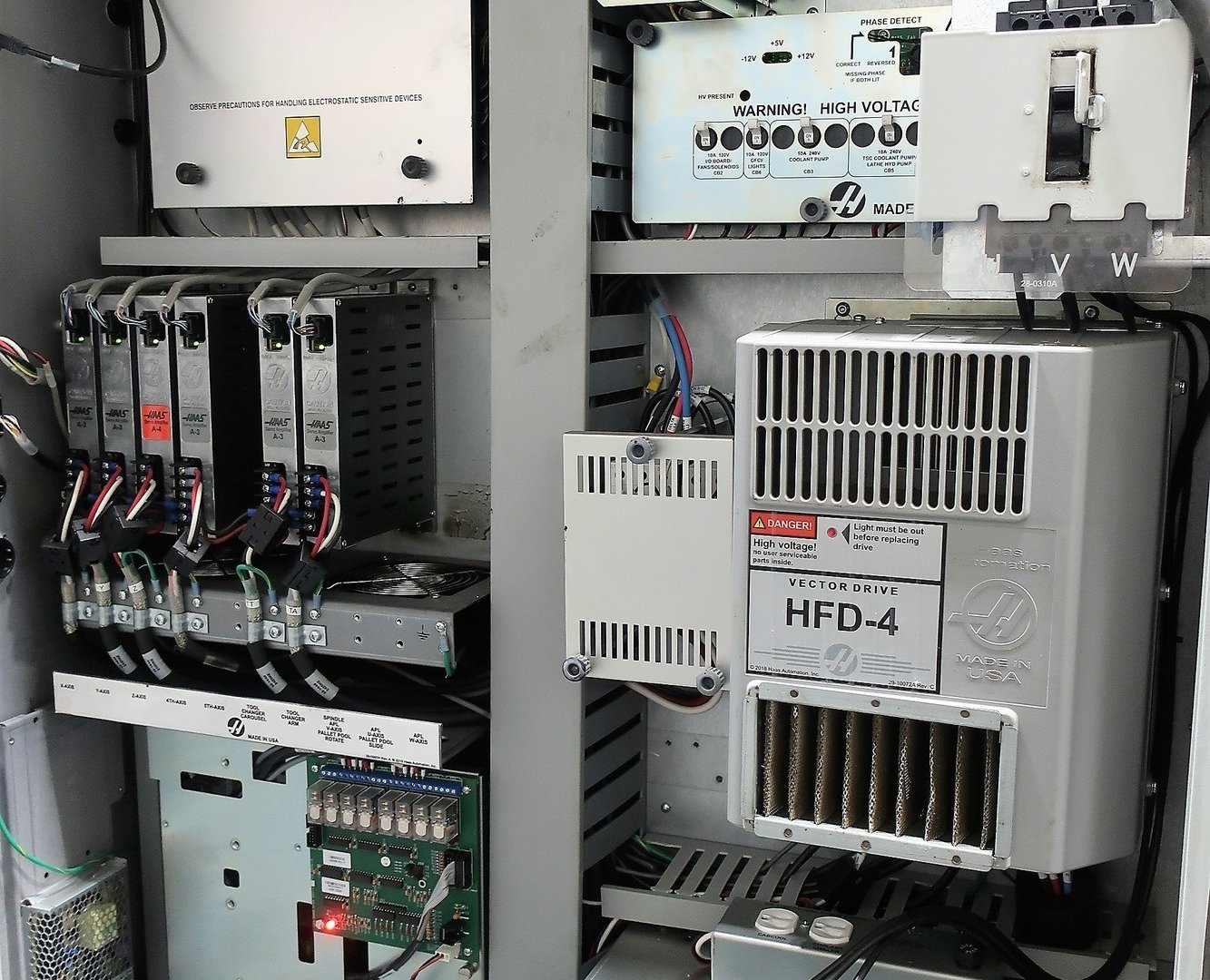

ELECTRICAL SPECIFICATION:
Spindle Speed: 12000 rpm
Drive System: Inline Direct-Drive
Spindle Power: 30.0 hp / 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A
Dimensions:
Domestic Pallet: 101 in x 99 in x 101 in / 257 cm x 251 cm x 257 cm Export Pallet: 98 in x 92 in x 100 in / 249 cm x 232 cm x 254 cm
