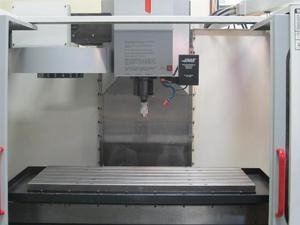

40"X, 20"Y, 25"Z, Haas, VF-3, 1996, Chip Auger, 4th Axis Prewire, Rigid Tap

General Specifications As Per Brochure:

X-axis travel (table): 40"
Y-axis travel (saddle): 20"
Z-axis travel (spindle head): 25"
Spindle end to table surface: 4" to 29"
Table size: 48" x 18" table load
Taper of spindle hole: no. 40
Spindle speed range: 7500rpm
Rapid traverse speed (x/y/z): 500 ipm
Cutting feedrate (x/y/z): 200 ipm
Main spindle drive motor: 15hp

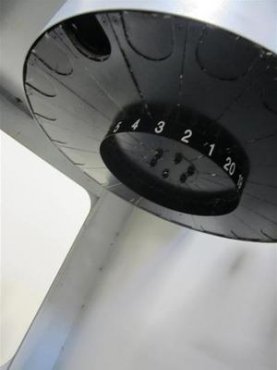

Magazine tool capacity: 20
Floor space required (approx.): 74.4" x 110" x 119" h
Machine weight (approx.): 13,300 lbs

139" x 110" x 118"

12500 (LBS)
