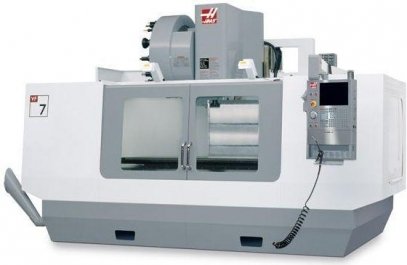

HAAS VF SK 7 50 Year 11.2007 Travel X 2134 mm Y 813 mm Z 762 mm Spindle taper: ISO 50 DIN 69871 two-stage gear max. Speed 7,500 min-1 torque (at 500 min-1) 610 Nm spindle motor power. Power 22.3 kW rapid traverse X + Y + Z axis 15.2 m / min tool magazine 30 places spiral chip conveyor (left ejection side) programmable coolant nozzle 15 inch LCD color screen with USB interface portable control panel with LCD screen machine options: Internal coolant supply with 70 bar 2 steps coolant filtration system spindle orientation rotate freely programmable coordinate system and scale MACRO button OMP 40 RENISHAW spindle (workpiece measurement) RENISHAW table probe TS 27 (measuring tools)
