3-axis CNC vertical machining center for dies and molds
Specifications:

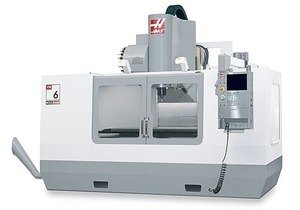

"Vertical mold-making machine, 64"" x 32"" x 30"" (1626 x 813 x 762 mm), 30 hp (22.4 kW) 12,000-rpm, inline direct-drive spindle for smooth finishes.
The VM-6's 64"" x 28"" (1626 711 mm) cast-iron table features standard T-slots (7 in the Y direction and 5 in the X) as well as an array of drilled and tapped holes. It has a maximum weight capacity of 4000 lb. The VM-6 comes standard with a 24+1 side-mount tool changer that swaps tools in 2.8 seconds with 540 ipm (13.7 m/min) X axis and 600 ipm (15.2 m/min) Y & Z axis rapids.
Also standard are an automatic chip-auger system, programmable coolant nozzle, remote jog handle, automatic air gun, rigid tapping, high-speed machining software with look-ahead, Ethernet interface, user-definable macros, coordinate rotation and scaling, spindle orientation and power failure detection module.
The Haas control features advanced tool management, single-button features, 15"" color LCD monitor and a USB port."
