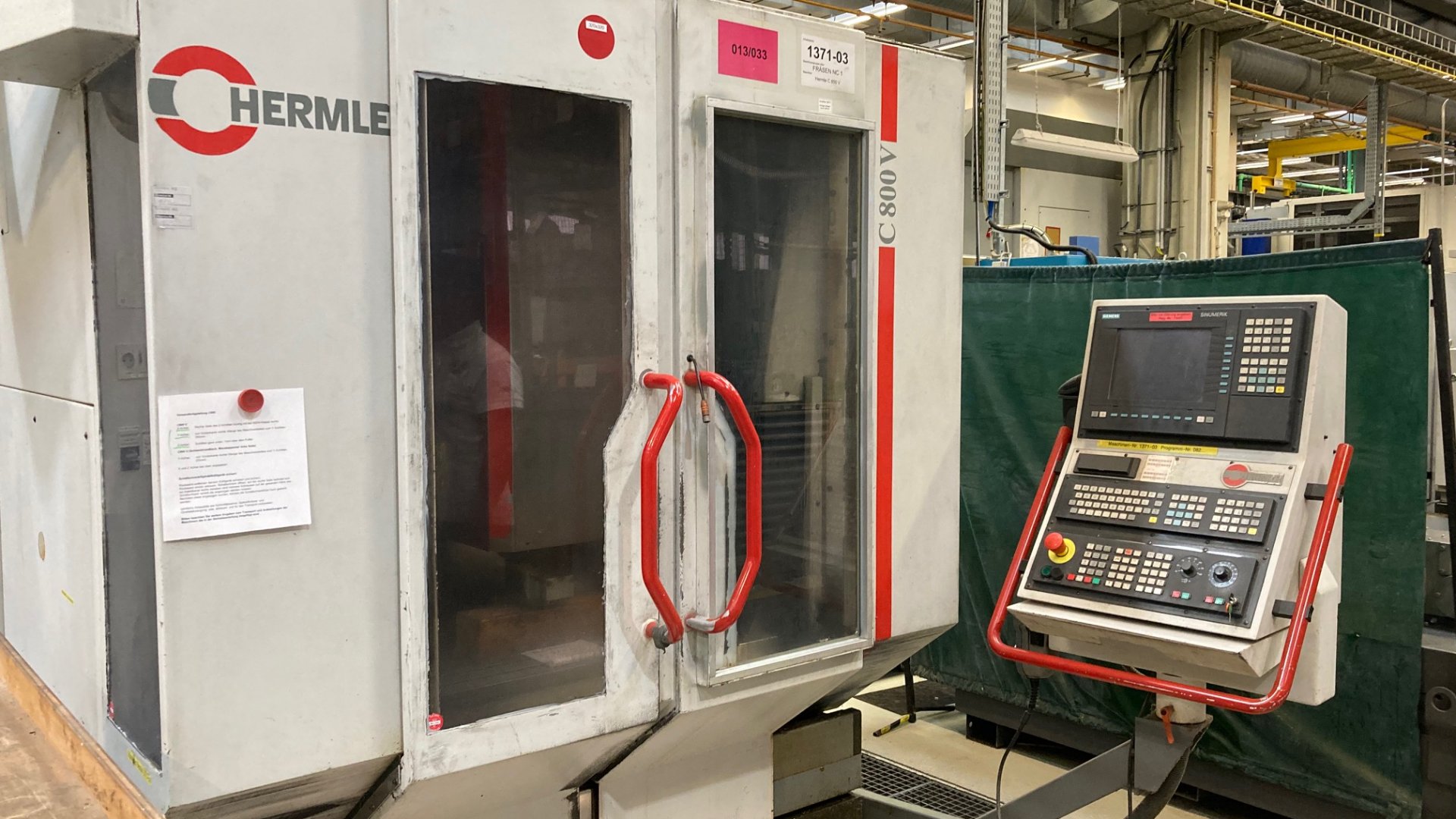

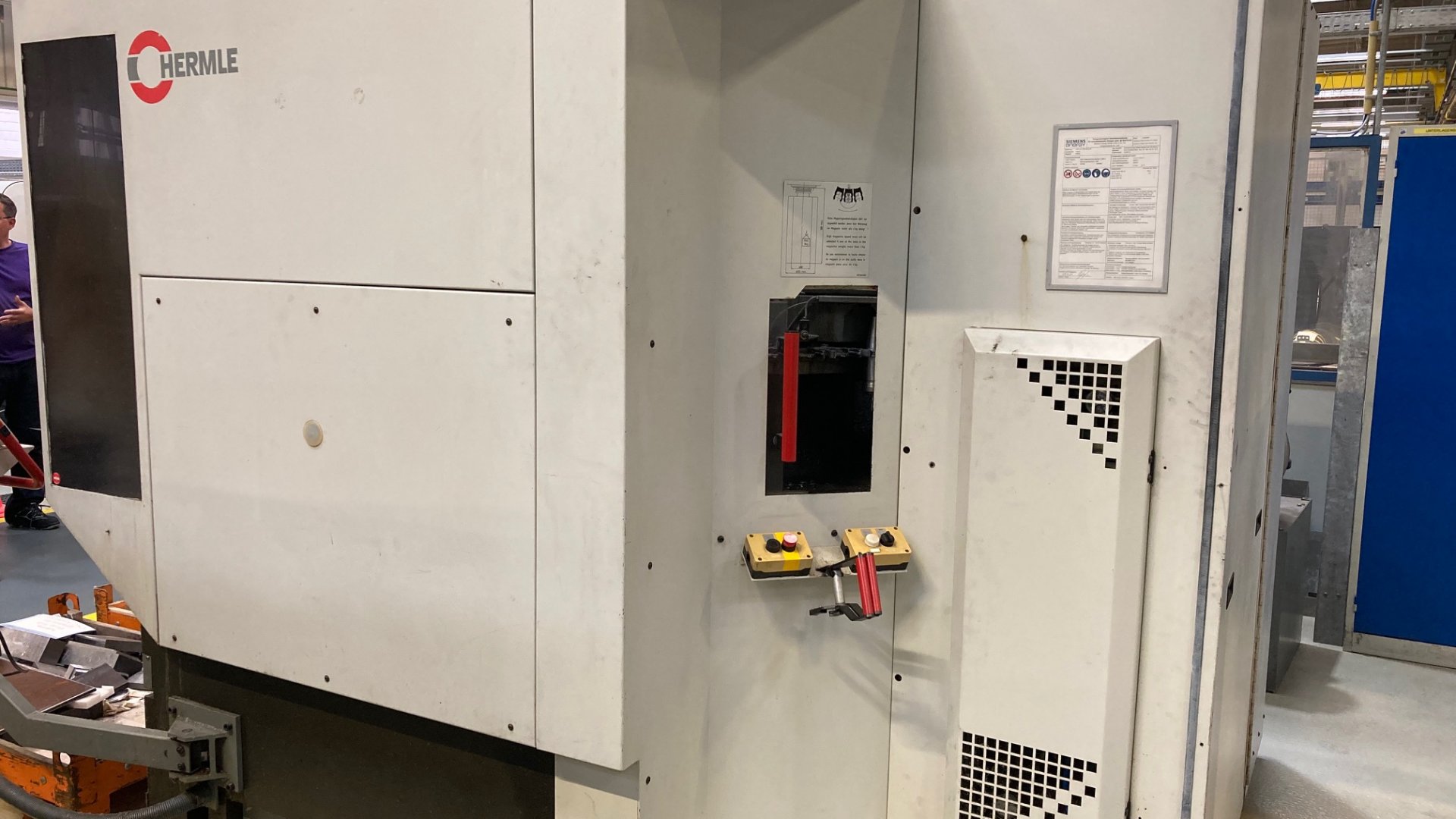

HERMLE, C800V, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:HERMLE
Model:C800V
YOM:1997
Location:Netherlands, BABBERICH
Price:On request
Stock No:7094
Control:CNC
ID:AS29313

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

X - Travel: 800mm
Y - Travel: 600mm
Z - Travel: 500mm

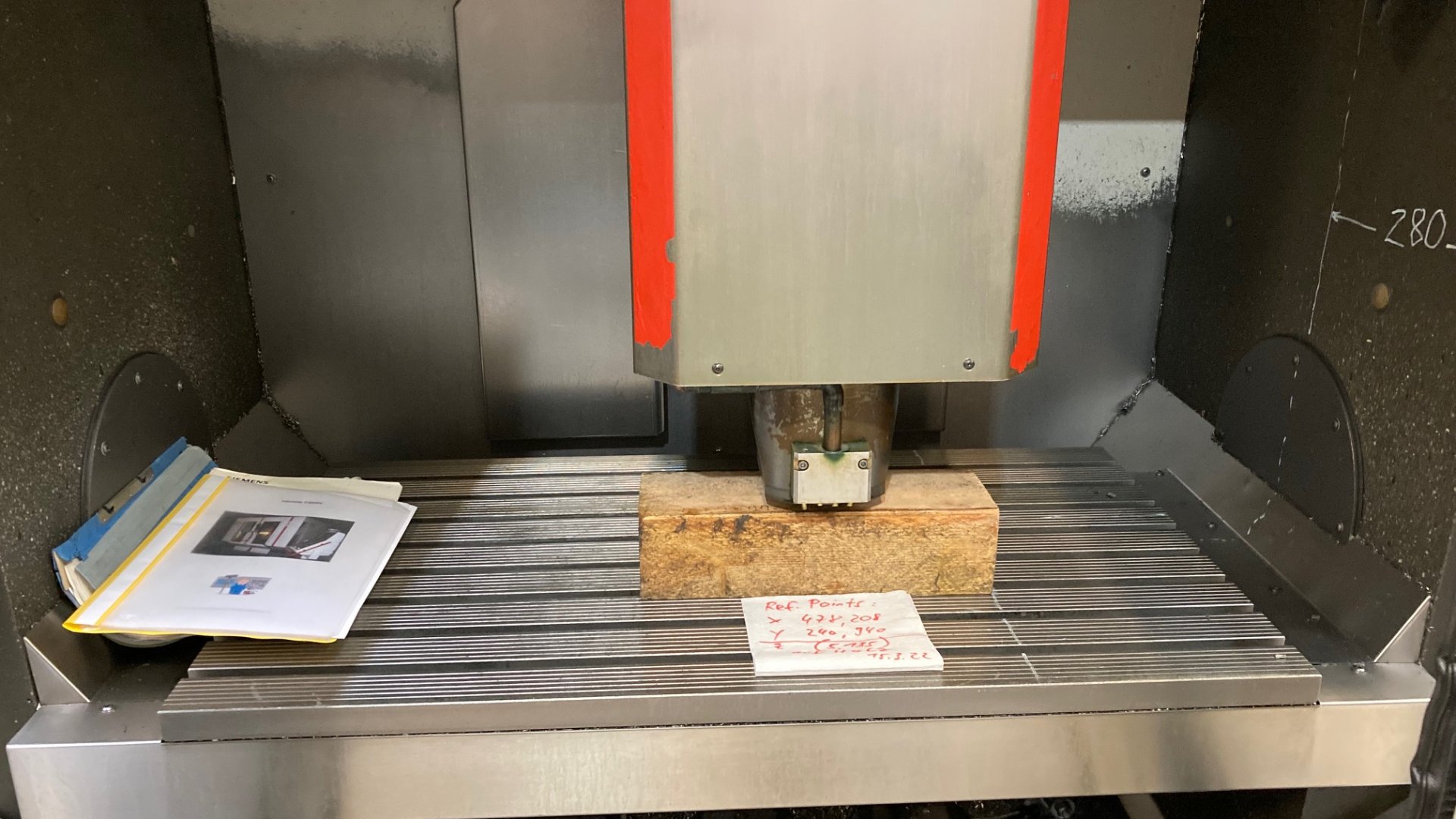

Table Length: 1000mm
Table Width: 560mm
Table load: 1500
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 30000mm/min.
Feed rate Z-Axis: 30000mm/min.
Spindle Taper: Sk40ISO/Bt/Mk
Power on spindle: 15kW
Speeds / ranges: 8000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3

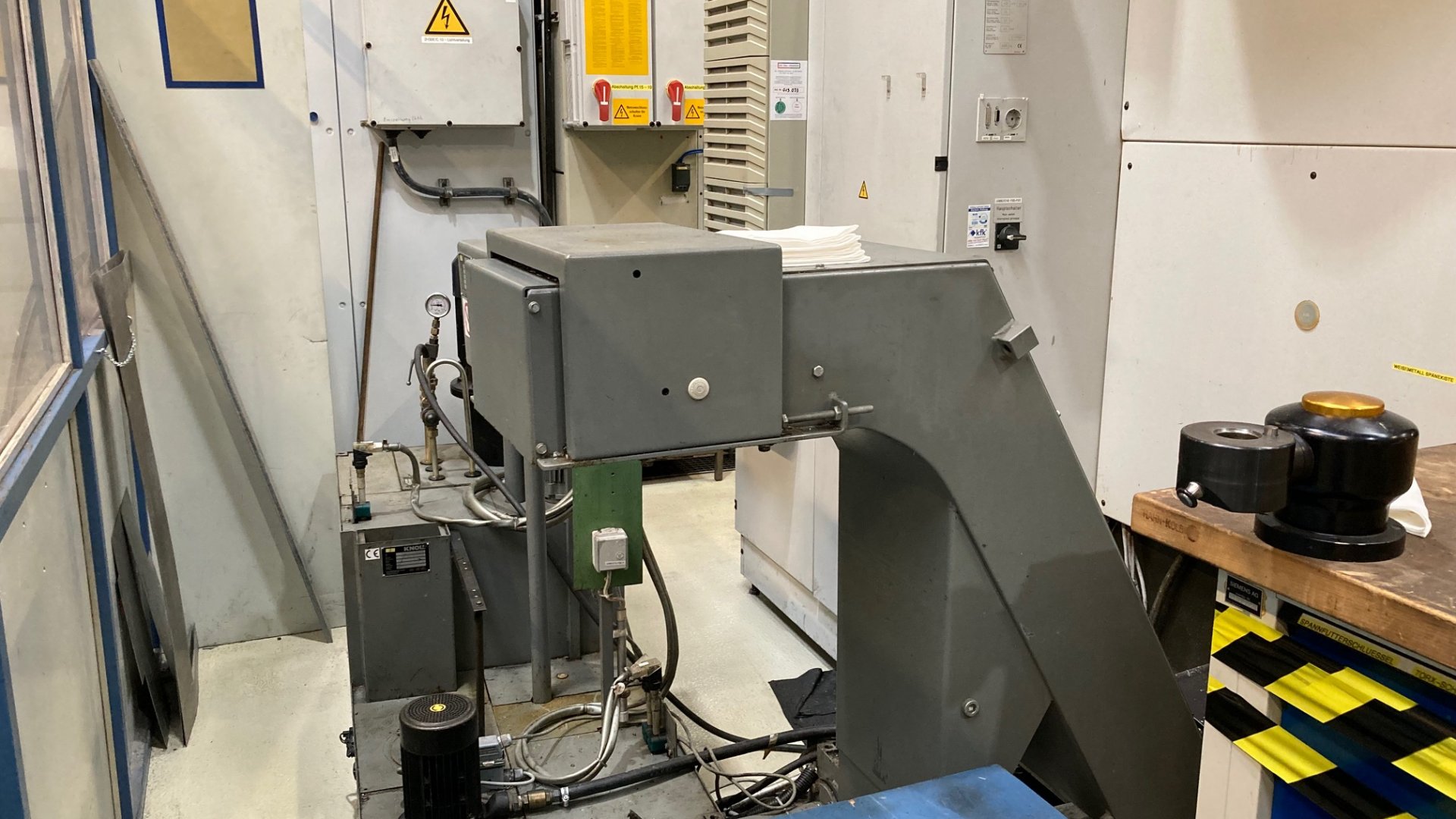

Chip conveyor: Yes
Coolantsystem: Yes
Length: 4200mm
Width: 2500mm
Height: 2800mm
Weight: 7200kg

Specifications:

X - Travel: 800mm
Y - Travel: 600mm
Z - Travel: 500mm
Table Length: 1000mm
Table Width: 560mm
Table load: 1500
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 30000mm/min.
Feed rate Z-Axis: 30000mm/min.
Spindle Taper: Sk40ISO/Bt/Mk
Power on spindle: 15kW
Speeds / ranges: 8000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 4200mm
Width: 2500mm
Height: 2800mm
Weight: 7200kg
