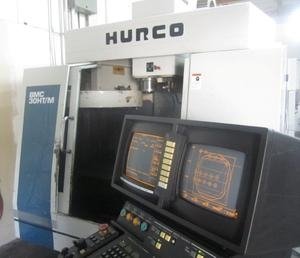

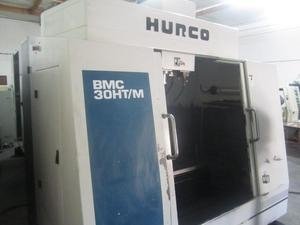

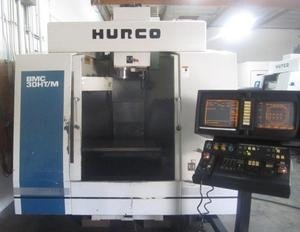

HURCO BMC 30HT/M, 30"X, 18"Y, 24"Z, 8000 RPM, Cat-40, 10 HP, Ultimax Dual screen

General Specifications As Per Brochure:

Travel:
X-Axis: 30"
Y-Axis: 18"
Z-Axis: 24"

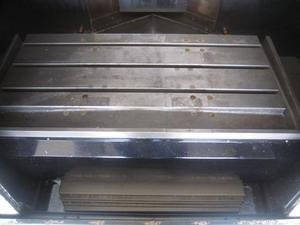

Table Size: 40.1" x 15.7"
Spindle Speed: 0 - 8,000 RPM
Main Motor: 10 HP
Spindle Taper: CAT 40
Tools: 24
Spindle Nose to Table Top: 6" - 30"
Table Load Capacity: 1,100 lbs.
Rapid Traverse Rates (X&Y/Z): 590 / 393 IPM
Tool Change Time (T-T/C-C): 7 / 11 Seconds
Max Tool Diameter: 3.9"
Max Tool Length: 12"
Max Tool Weight: 15 lbs.
Power: 240volts/60hz
Full Load KVA: 20 KVA
Largest Motor KVA: 7.5
Machine Dimensions (L x W x H) (approx.): 102" x 108" x 98"
Machine Weight (approx.): 8,200 lbs.

Equipped with (must be verified by buyer):
Rigid Tap

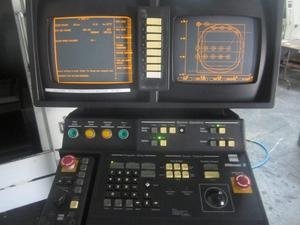

Ultimax Dual Screen Control
24 ATC
Remote Jog Handle

102" x 108" x 98"

8,200 lbs
