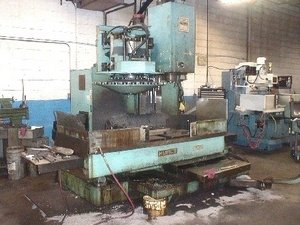

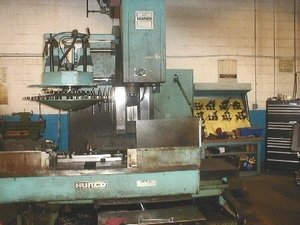

40" X 30" X 22" Hurco BMC-40 Vertical Machining Center (1986)

40" X 30" X 22" Hurco BMC-40 Vertical Machining Center (1986)




Table size: 51.7" X 27.6"
Maximum weight on table: 3,300 Pounds
X-Axis travel: 40"
Y-Axis travel: 30"
Z-Axis travel: 22"
Rapid traverse to all axes: 400 IPM
Distance, spindle nose to table: 6.3" (min.) to 28.3" (max.)
Taper in spindle: No.40 CAT
Spindle speeds: 30 to 4,000 RPM
Spindle drive motor: 10 HP
Automatic Tool Changer: 30 Tools
CNC Type: Hurco Ultimax


Other equipment:

Coolant system, Electrical controls wired for 3-phase 60-cycle 240-Volt operation.

17,600 Lbs
