x-travel 1020 mm
y-travel 510 mm
z-travel 610 mm
distance spindle /table 150- 760 mm
table surface area 1220 x 510 mm
T-slots 5 (DIN 650)
T-slot - width 18 (H8) mm
T-slot - distance 100 mm
table load 682 Kg
Kind of drive Drehstrommotor
output 30 min ED 15,0 kw
Torque bei 625 min
Torque bei 30 min. ED 222Nm
feed speeds - directly programable 3 - 7600 mm/min
rapid travel x/y/z 20/20/15 m/min
Tool bore SK - A 40 (DIN 69871)

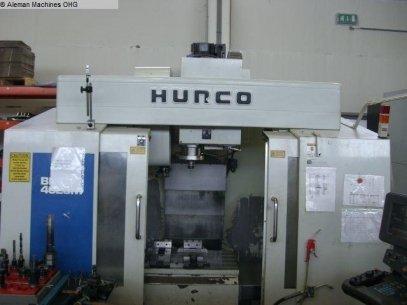

HURCO
turning speed range 80 - 8000 U/min
24
max. tool weight 7 kg
Max./min material thickness 100 mm
max. tool length 300 mm
volume cooling tank 300 l
Number of working hours 8.900 h

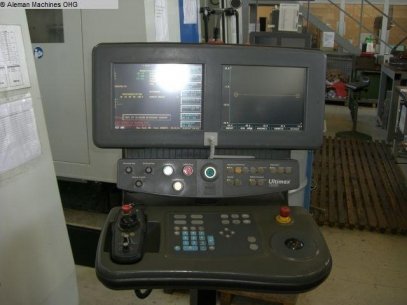

control ULTIMAX
total power requirement 31 kVA/380V/35A
weight of the machine ca. 6,250 t
dimensions of the machine ca. 3,2 x 3,7 x 2,7 m

-
