Description:

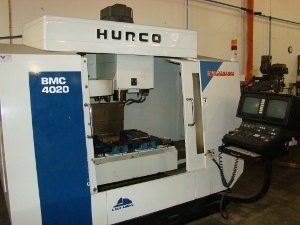

40"X, 20"Y, 24"Z, HURCO, BMC4020, Ultimax 3, 20 HP, 8000K, #40, 24 ATC, 1998
Specifications:
SPECIFICATIONS:
Axis travels--X 40" (1016mm)
--Y 20" (508mm)
--Z 24" (609mm)

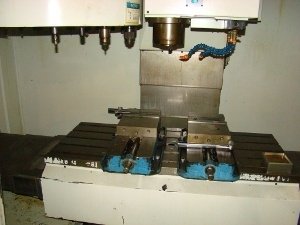

Working surface 48" x 20" (1219mm x 508mm)
Load with uniform distribution 1500 lbs (682 Kgs)
Main spindle motor 20 HP (14.9 KW)
Spindle type CAT 40
Spindle speeds 1 to 8000 rpm
Number of tool stations 24
Maximum rapid traverse--X & Y 787 IPM (20 m/min)
--Z 530 IPM (13.5 m/min)

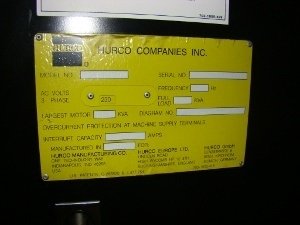

Electrics 230/3/60
Weight, approx. 12,224 lbs (5545 Kg)
Dimensions (L x W x H) 91" x 106" x 101"
(2261mm x 2946mm x 2565mm)
EQUIPPED:
Software upgrade
Ultipockets, Ultidraw DXF translator, NC productivy package, Rigid tapping
Industrial standard NC "Fanuc Compatable" software

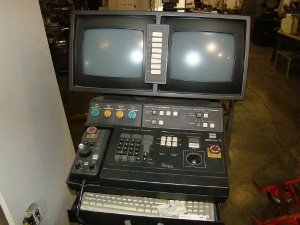

Ultimax III dual screen control, Complete set of manuals
Full chip and coolant enclosure, Isolated way lube system
Flood coolant, Dual worklights, Hour meter reads 5980 hours
From pharmaceutical company.
Dimensions:
136" x 96" x 100"
Weight:
13000 (LBS)
