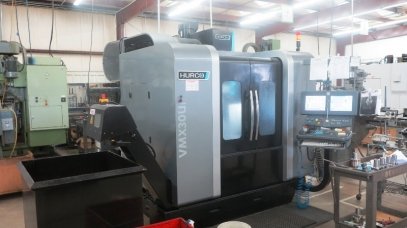

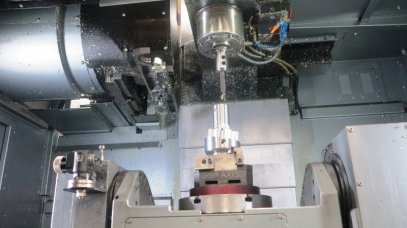

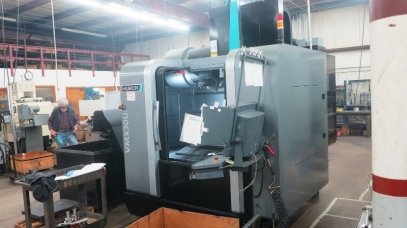

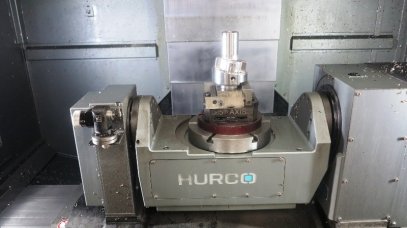

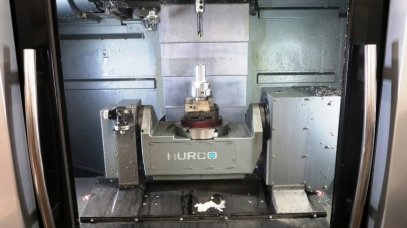

2013 Hurco VMX30Ui cnc vertical machining center, with conversational WinMax control (5 axes XYZAC simultaneous), gigabit Ethernet LAN port, engraving package, selectable surface finish quality SFQ software feature, Ultimotion high speed contouring with dynamic variable look ahead, NC tool center point management, NC work plane transformation, industry standard G code and variable macro programming, 12K rpm spindle, tilting trunnion table, Win Max control 5 axes simultaneous, dual 12" LCD color screen Hurco WinMax control, advanced 3D solid verification graphics, part number serialization, 18HP spindle, 2GB ram memory, 64GB solid state hard drive, 2GHz dual core Intel processor, 2 USB ports, thread milling, rigid tapping, 30" x 20" x 20.5" XYZ travels, 9.8" round table diameter, spindle nose to table 3.5”, 400# max table capacity, max parts size 15.75" dia x 12" height, CAT40, A axis -30/+110 deg, C axis 360 deg, 40 station double arm ATC, chip conveyor, coolant, Ultipocket w/helical ramps & insert pocket prog ($2500 option), enhanced DXF transfer ($2500 option), spindle chiller ($3100 option), 300 psi CTS ($8300 option), OMP40-2 part probe & OTS contact tool probe w/interface $7995 option), used for 1 or 2 parts only, very low hours, owner buying new larger machine for new contracts, installed late 2013/early 2014, in plant under power

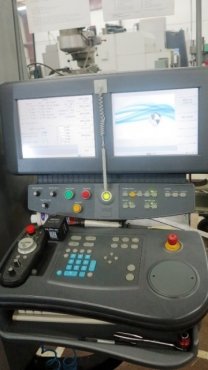

Description: Equipped With Hurco VMX30U (VMC w.WinMax Control (5-Axis Simultaneous) Dual 12" LCD Color Screen Hurco WinMax Control 2GB Ram Memory 64 GB Solid State Hard Drive 2GHz Dual Core Intel Processor USB Ports Gigabit Ethernet LAN Port Conversational Onboard Programming Industry Standard NC (G-Code Programming Onboard & Offline) Industry Standard NC Macro Package (Variable Macro Programming) Thread Milling Rigid Tapping Advanced 3D Solid Verification graphics Selectable (1-100) Surface Finish Quality (SFQ) Software Feature Ultimotion High Speed Contouring w/Dynamic Variable Look Ahead (Up To 30% Faster) NC Tool Center Point Management (Allows Off-center Work piece Set-Up) NC Work Plane Transformation (Allows multiple work Planes Referenced to Part Zero) Lift Up Chip Conveyor Coolant & Air Guns Dual LED Work Lights Remote Hand wheel Assembly w/E-Stop, Feed & Spindle Overrides Spindle Load Monitor Ultipocket w/Helical Ramps & Insert Pocket Programming Enhanced DXF Transfer Spindle Chiller Coolant Thru-Spindle (300 PSI) OMP 40-2 Part Probe and OTS Contact Tool Probe w/Interface

TABLE SIZE 9.8"
MAX. WEIGHT ON TABLE 440 LBS
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20.5"
A-AXIS TRAVEL +30/-110 °
C-AXIS TRAVEL 360 °
SPINDLE NOSE TO TABLE 3.5” TO 24.0”
CENTERLINE TABLE TO COL 14” TO 34”
CENTERLINE TABLE TO SHEETMETAL 26” BACK; 26” FRONT; 41” LEFT; 41” RIGHT
MAX. SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 18 HP
SPINDLE TORQUE 158 FT LBS
SPINDLE TAPER CAT-40
TOOL CHANGER (DUAL ARM) 40 ATC
RAPID TRAVERSE (XY/Z) 1378/1181" IPM
PROG. FEEDRATE 900 IPM
A-AXIS FEEDRATE 25 RPM
C-AXIS FEEDRATE 25 RPM
REC FLOORSPACE 156.5" X 161"
MACHINE FOOTPRINT 94” X 103” X 120” TALL

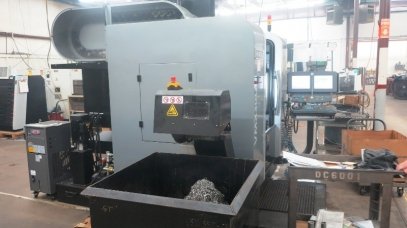

CHIP CONVEYOR 21” X 108” X 58” TALL (FITS UNDER MACHINE)

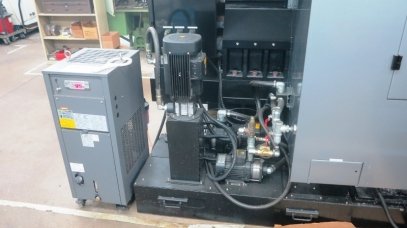

CHILLER 15” X 24” X 40” TALL (SITS ADJ TO COOLANT)
COOLANT EQUIPMENT 26” X 78” X 45” TALL (FITS WITHIN FOOTPRINT)
MACHINE WEIGHT 11,616 LBS
YOUTUBE VIDEOS #1 https://www.youtube.com/watch?v=2IjjMMygq9g
YOUTUBE VIDEO #2 https://www.youtube.com/watch?v=kt6lCvNbLXs
(WALK AROUND AT 7:30)
YOUTUBE VIDEO #3 https://www.youtube.com/watch?v=cWXBw0QknMs
