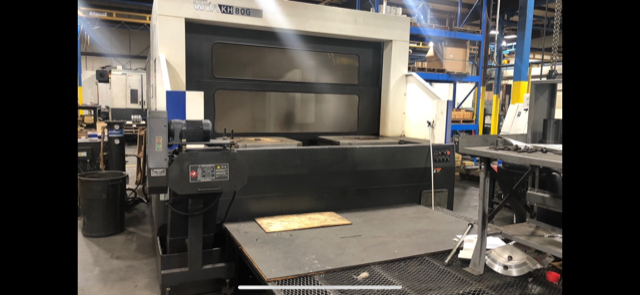

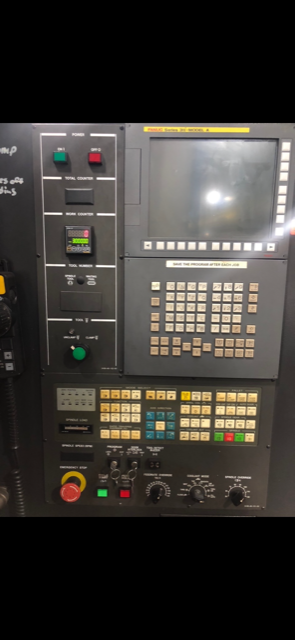

2009 Hyundai Kia Model KH-80G Horizontal Machining Center - Fanuc Controls

Specifications:

Table Size 31.5” x 31.5”
Max. load on table 4,850 lbs.
Distance - table top to spindle center 2" - 41.6"
Distance - table center to spindle nose 9.8" - 43.3"
X-axis travel 49.2”
Y-axis travel 39.4”
Z-axis travel 33.5”
Rapid Traverse (X&Y/Z) 709 /710 ipm
Spindle Taper CT-50
Spindle Speed Range (3 Step Gear) 20 - 4,500 rpm
Spindle Motor (Torque) 34.9/29.5 hp. (940.4 ft. lbs.)

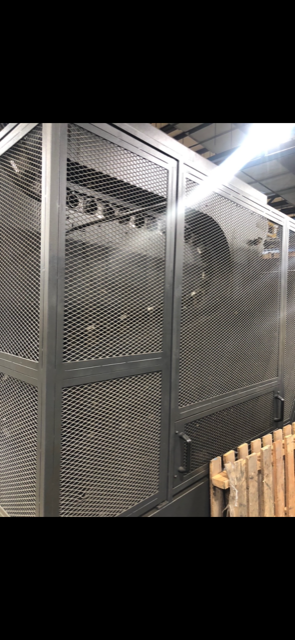

ATC Capacity 80 Stations
Floor Space Requirements 216.9″ x 128.7″ x 126.8″
Electrical Requirements 230V/3Ph/60Hz
Machine Weight 47,500 lbs.

Equipped With:

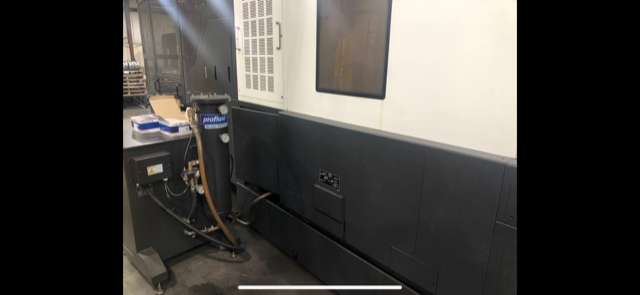

Through Spindle Coolant

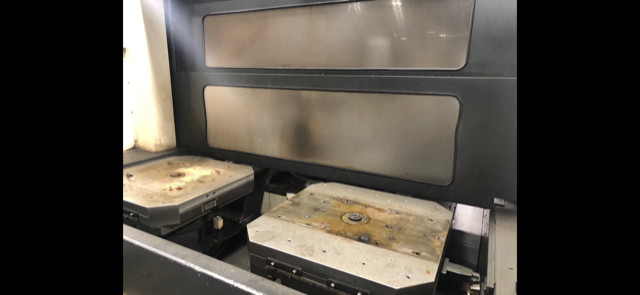

Shuttle Type APC
