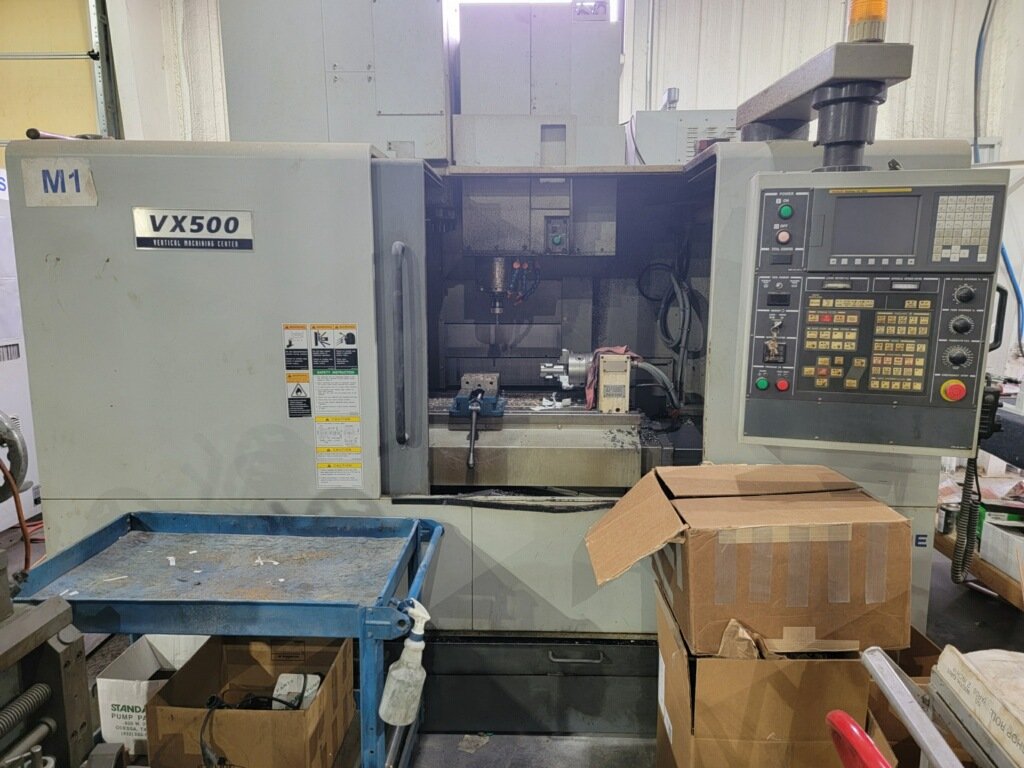

2007 Hyundai Kia VX-500 Vertical Machining Center
(4th Axis Rotary Table) Fanuc 0i-MC Control

2007 Hyundai Kia VX-500 Vertical Machining Center

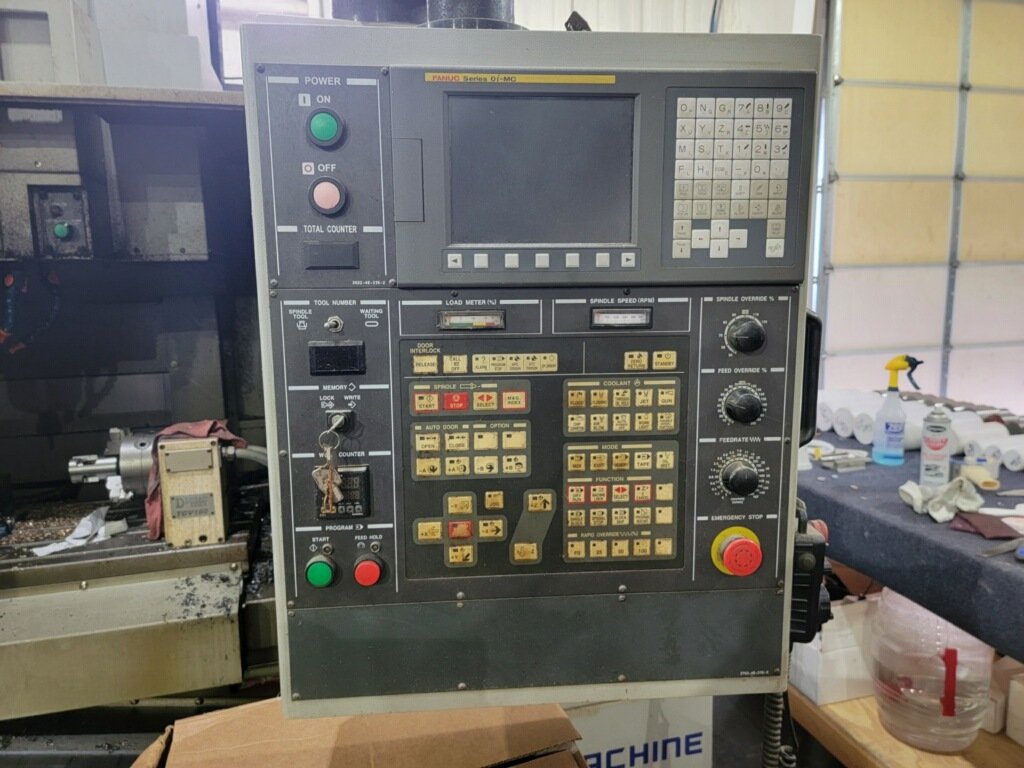

Fanuc 0iMC Control
Specifications:
Table Size (Max weight capacity) 47.2″ x 19.7″ (1,763 lbs.)
Spindle Nose to Table (Min.- Max.) 5.9″ – 30.9″
X-Axis Travel 41.7″
Y-Axis Travel 20.1″
Z-Axis Travel 25.0″
Rapid Traverse Rates 1,417 ipm
Maximum Feed Rate 590 ipm
Spindle Taper CT-40
Speed Range 20 – 10,000 rpm
Spindle Power 15 hp.
Automatic Tool Changer 24 Stations
Maximum Tool Weight / Dia. /Length 17.6 lbs. / 3.54" / 11.8"
Tool Changing Time 3 Seconds
Air Requirements 80 psi, (4 scfm)
Electrical Requirements 230V/3Ph/60Hz (35 kva)
Overall Dimensions 12’L x 8’2”W x 10″H
Machine Weight 16,500 lbs.
Equipped With:

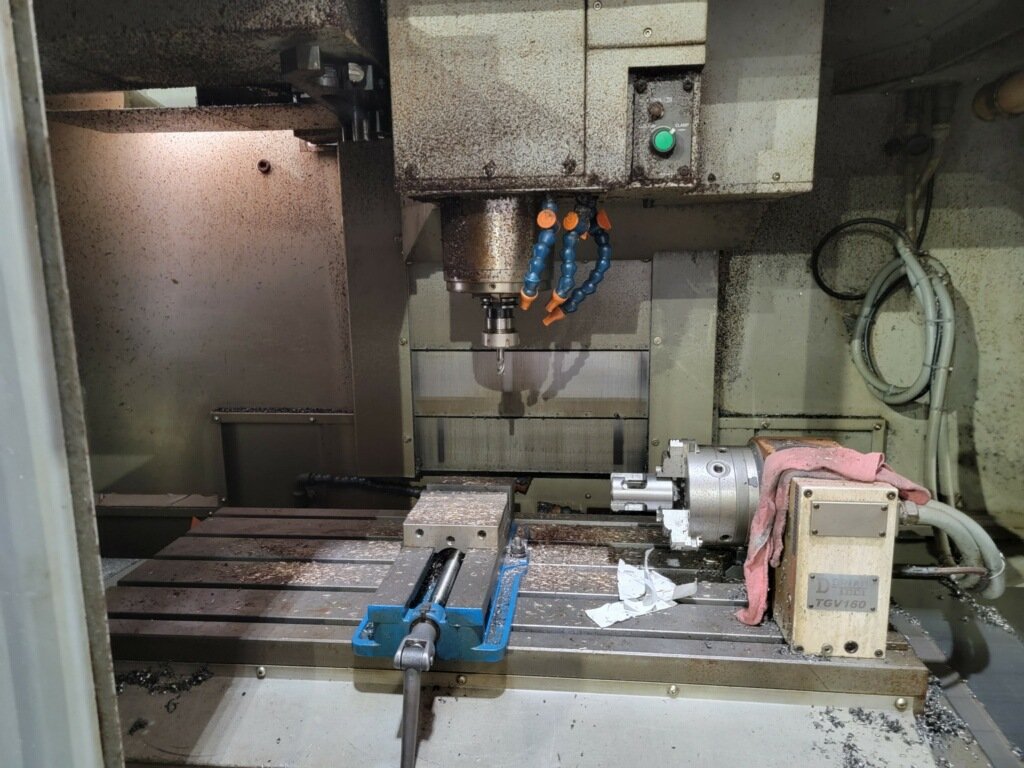

4th Axis Rotary Table
Spindle Chiller Unit
Manuals

12' x 8' x 10'

16,500 lbs.
