3-axis CNC machine (VMC)
JOHNFORDS - VMC 1300 HD
MACH-ID 8632
Heavy Duty BT50 machine

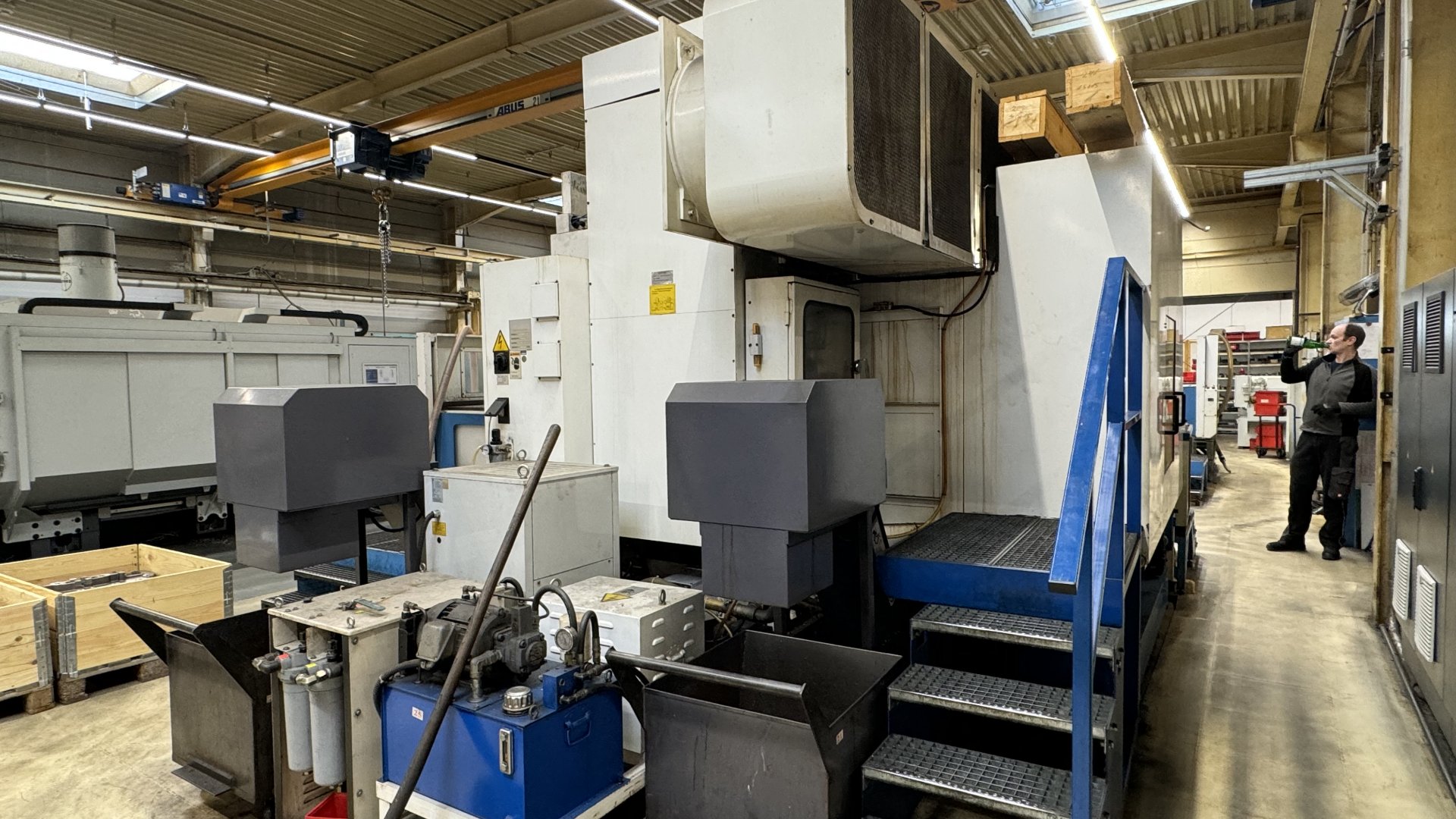

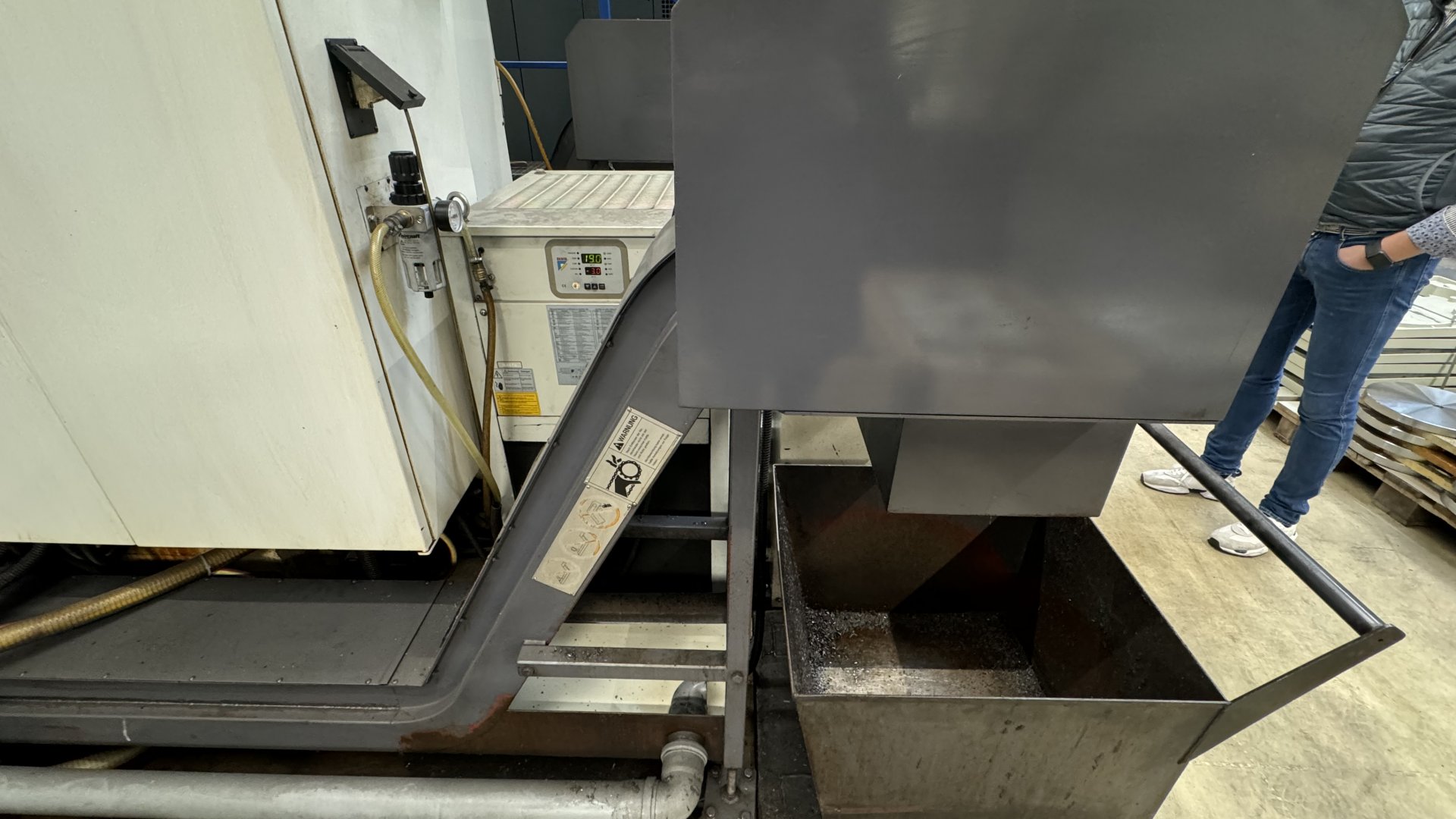

Double chip conveyor
Coolant system
Air filtration system
Optional pallet change on side machine
X - Travel: 1300mm
Y - Travel: 850mm
Z - Travel: 710mm

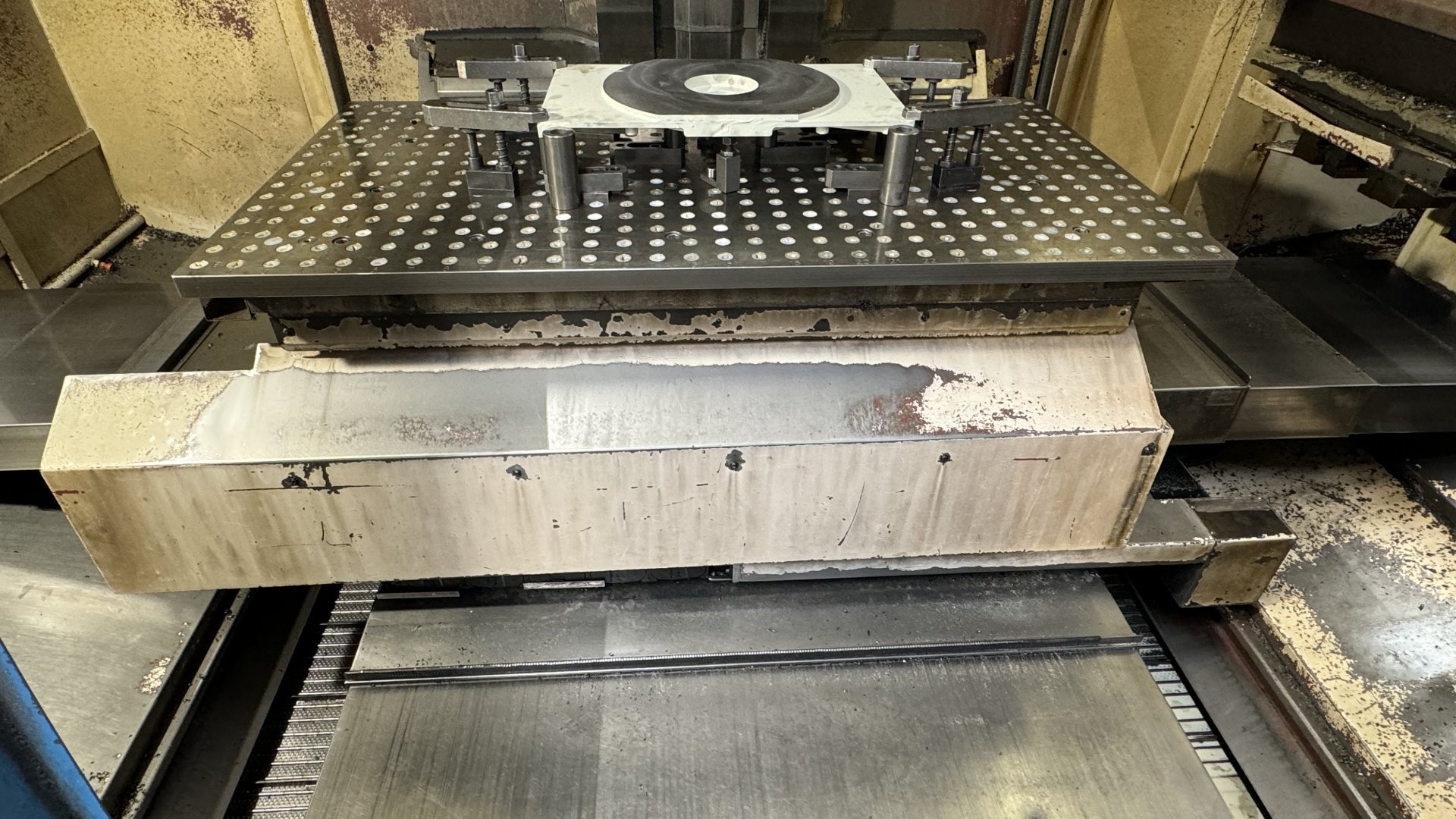

Table Length: 1500mm
Table Width: 750mm
Table load: 3300
Feed rate X-Axis: 18000mm/min.
Feed rate Y-Axis: 18000mm/min.
Feed rate Z-Axis: 12000mm/min.

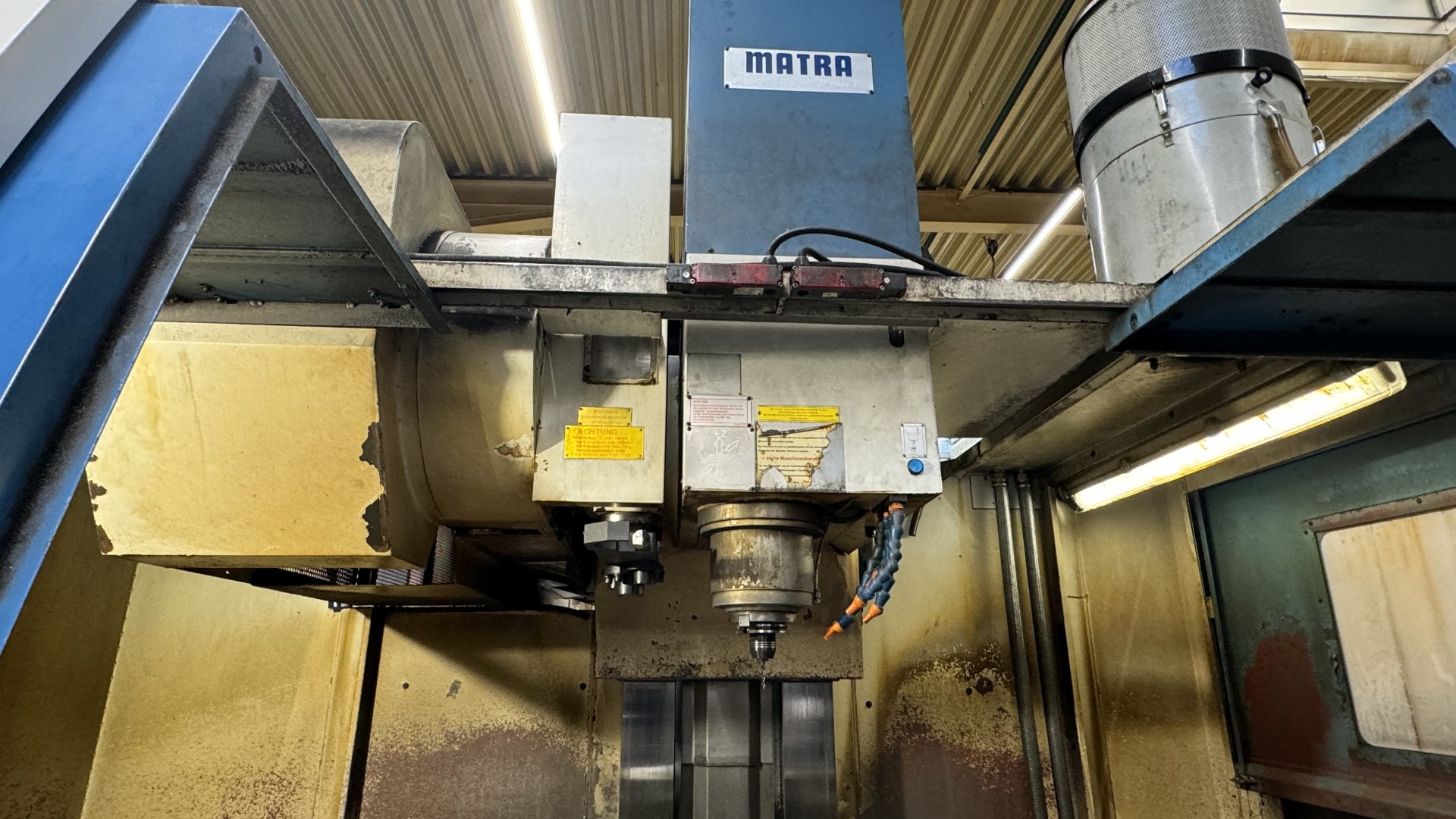

Spindle Taper: 50ISO/Bt/Mk
Power on spindle: 18.5kW
Speeds / ranges: 4500Rpm
ATC / revolver: 20
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3800mm
Width: 4525mm
Height: 3480mm
Weight: 16500kg
