Manufacturer: Kitamura
Model: Mycenter 1
S/N:
Year: 2000
Condition: Good

Specifications:
Approximate Machine Age: 2000
Pallet Size: 19.7" x 11.8"
Pallet Load 200 LBS
Pallet Change Time SEC. 7.5 sec.
X-Axis Table Travel: 19.9"
Y-Axis Saddle Travel: 14"
Z-Axis Spindle Head Travel: 16"
Maximum Distance Spindle To Table: 8.5" to 21.5"
Rapid Traverse Rate: X & Y 944 IPM Z Axis 787 IPM
Spindle Taper: BT-35
Spindle Speeds: 13,000 RPM
Spindle Drive Motor: 15 HP
Automatic Tool Changer: 20 Positions
Maximum Tool Diameter: 2.76"
Maximum Tool Length: 9.8"
Maximum Tool Weight: 8.8 lbs
Tool Change time Tool to Tool 1.2 Sec
Tool Change time 3.2 SEC.
Approximate Dimensions: 143.6" x 91" x 84"
Machine Weight 10,780 LBS


Equipped With:
EQUIPPED WITH:

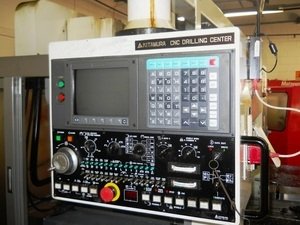

Yasnac I80 CNC Control
Two Speed Gearbox
RS 232 Port Interface
Rigid tapping
Helical Interpolation
Flood Coolant System,
Manual Pulse Generator and remote jog handle
Daikin Spindle Chiller (Oil Cooling Sys)
All available Books and Manuals

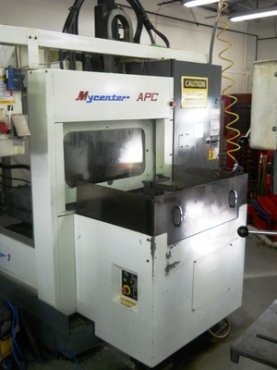

2 pallet, Pallet changer
Chip Conveyor

143.6" x 91" x 84"

10,780 LBS
