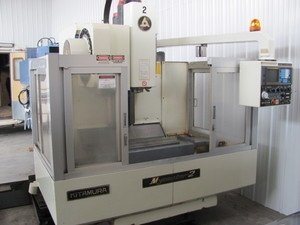

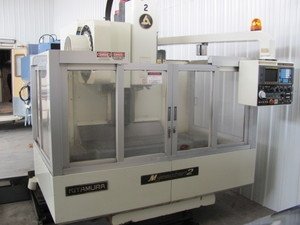

Kitamura Mycenter 2 CNC Vertical Machining Center, New 1990, 7000 RPM,
20 ATC

X-Axis Travel........................................23"
Y-Axis Travel........................................17"
Z-Axis Travel........................................18"

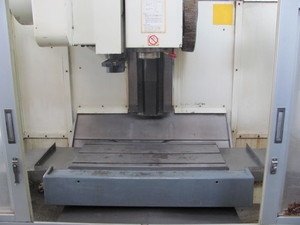

Table Working Surface..........................35.4" x 16.1"
Table Load Capacity.............................661 lbs
Feed Rate (X & Y Axis)........................0.1 - 393 IPM
Reed Rate (Z Axis)............................... 0.1 - 393 IPM
Rapid Traverse Rate X,Y.......................944 IPM
Rapid Traverse Rate Z...........................787 IPM
Tool Storage Capacity...........................20
Spindle Horesepower............................10 HP
Spindle Speeds Range...........................20-7000 RPM
Spindle Taper........................................40
Approx. Machine Dimensions............... 106" x 100"
Approx. Machine Height.......................114"
Approx. Machine Weight......................11,000 lbs

Equipped with:

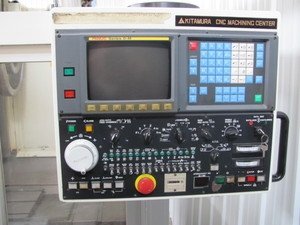

Fanuc OM Control

10800 (LBS)
