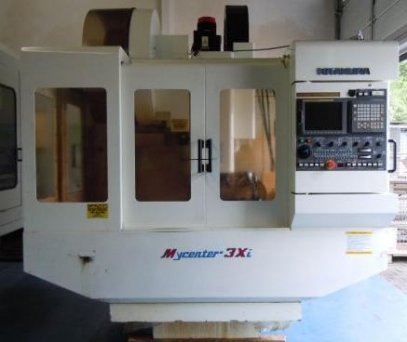

machine height: max. 2.815 mm
footprint: 2.585 x 2.165 mm
weight: 5.700 kg

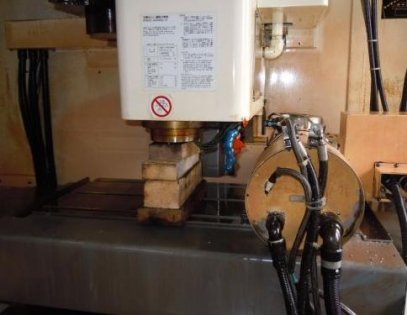

Spindle:
spindle cone: NST. 40
drive: 2 steps

Table:
work space: 410 x 900 mm
max. table load: 500 kg
T-slots: 18 x 3 mm

travel:
x - axis: 760 mm
y - axis: 455 mm
z - axis: 460 mm
distance table top - spindle head: 110 - 570 mm
distance table center line- control: 215 - 670 mm

tools:
tool memory: 30
tooling electoral procedure: directly control
tool holder: BT (SK) 40
max. tool diameter: 80 mm
max. tool length: 300 mm
tool change time (tool to tool): 1,2 sec.
tool change time (chip to chip): 3,2 sec.

motors:
spindle motor (30 min/continuous operation): 11,0 KW AC
motor for tool changer: 400 W AC
motor for central lubrication: 20 W AC

rapid traverse:
x,y - axis: 50.000 mm/min
z - axis: 36.000 mm/min
cutting feed x,y - axis: 36.000 mm/min

others:
power supply: 25 KVA 200 V AC
air connection: 5 bar

accessories:
spindle orientation
automatical spindle cone cleaning with compressed air
spindle bearing- lubrication system ( air - oil - mixture)
spindle oil cooler
fixed tool position
original Kitamura standby position of the tools by preselection of the T-Code
tooling choice bidirectional
coolant tank 330 Litre

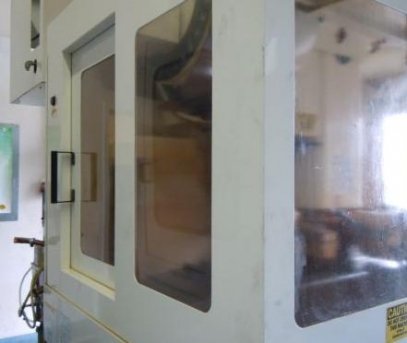

fully closed housing
automatical central lubrication of the guideways

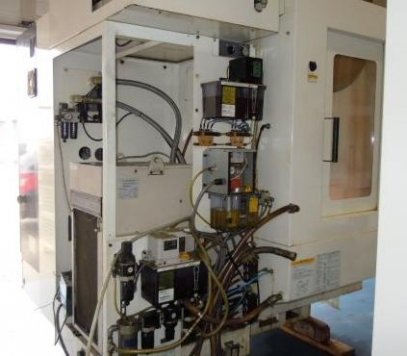

hydraulic units with tank
working light
cycle end lamp
air FRL machine ( filter, regulator, lubrication)

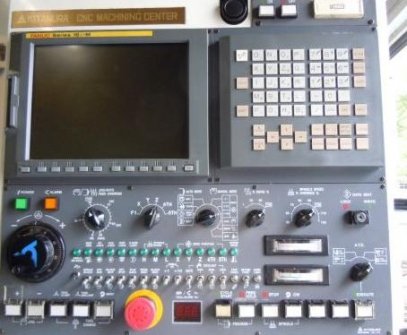

swivelling control paneel
RS 232C interface
PCMCIA interface
door lock switch
emergency stop switch at the tool magazine
manually index switch
self diagnostic function

-
