Specification Description
Approximate Machine Age: 1997
Pallet Size: 18.1 X 12"
Pallet Load 200 LBS
Pallet Change Time SEC. 7.5 sec.
X-Axis Table Travel: 12"
Y-Axis Saddle Travel: 10"
Z-Axis Spindle Head Travel: 12"
Maximum Distance Spindle To Table: 8.5" to 21.5"
Rapid Traverse Rate: X & Y 1574 IPM Z Axis 1417IPM
Spindle Taper: BT-30
Spindle Speeds: 8,000 RPM
Spindle Drive Motor: 10 HP
Automatic Tool Changer: 20 Positions
Maximum Tool Diameter: 2.76"
Maximum Tool Length: 9.8"
Maximum Tool Weight: 8.8 lbs
Tool Change time Tool to Tool 1.2 Sec
Tool Change time 3.2 SEC.
Approximate Dimensions: 91" X 47.2w X 87.81 L
Machine Weight 6,394 LBS
Equipped With:
EQUIPPED WITH:

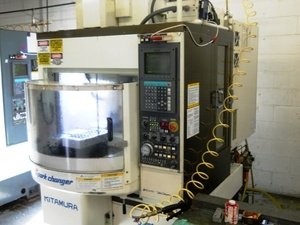

Yasnac I80 CNC Control
RS 232 Port Interface
Rigid tapping
Helical Interpolation

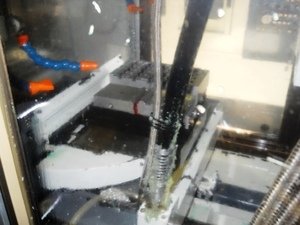

Flood Coolant System,
Manual Pulse Generator and remote jog handle
Daikin Spindle Chiller (Oil Cooling Sys)
All available Books and Manuals

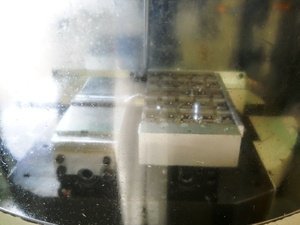

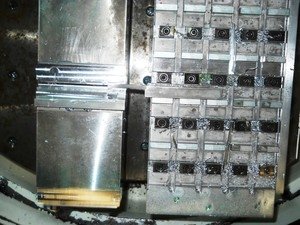

2 pallet, Pallet changer
Chip Conveyor
This machine is under power and ready to be inspected
