New spindle drive installed in last 6 months. Fixture not included.
Specifications:

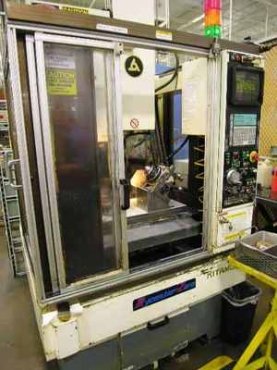

ONE USED KITAMURA MYCENTER VMC
Model: Zero
Table size: 12.4” x 20”
Travels: 12” x 10” x 12”
Rapids: 787” in X & Y, 472 ipm in Z
Cutting feeds: 197 ipm max.
Spindle RPM: 8,000
Spindle taper: BT 30
Spindle HP: 5
Max. table load: 220 lbs.
Spindle nose to table: 4.9” to 16.9”
ATC: 16 place
Dimensions: 47” x 62” x 80” high x 4,400 lbs.
Wired: 220 volts/3ph/60cy
EQUIPPED WITH:
Rigid tap

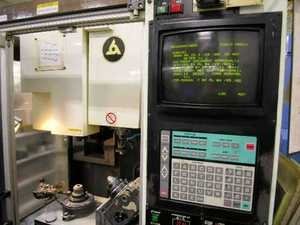

Yasnac MX-3 CNC controls with RS-232 port

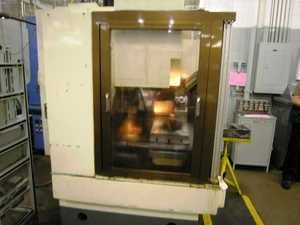

Full enclosures
ATC guards
New spindle drive installed 6 months ago
New Mitsubishi Vector drive Freqrol Z024 installed about one year ago
