Specifications:
Approximate Machine Age: 1997
Pallet Size: 18.1” x 12”
X-Axis Table Travel: 12"
Y-Axis Saddle Travel: 10"
Z-Axis Spindle Head Travel: 12"
Rapid Traverse Rate: X & Y 1,574 IPM, Z Axis 1,417 IPM
Spindle Taper: BT-30
Spindle Speeds: 8,000 RPM
Spindle Drive Motor: 5 HP
Automatic Tool Changer: 16 Positions
Maximum Tool Diameter: 2.76"
Maximum Tool Length: 9.8"
Maximum Tool Weight: 8.8 lbs
Tool Change time Tool to Tool 0.8 sec
Tool Change time 2.0 sec
Dimensions: 47” x 88” x 91” H x 6,400 lbs.
Equipped With:
EQUIPPED WITH:

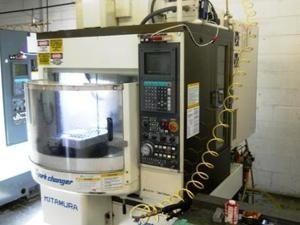

Yasnac I80 CNC Control
RS 232 Port Interface
Rigid tapping
Helical Interpolation
Flood Coolant System,
Manual Pulse Generator and remote jog handle
Daikin Spindle Chiller (Oil Cooling Sys)
All available Books and Manuals

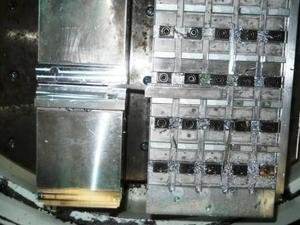

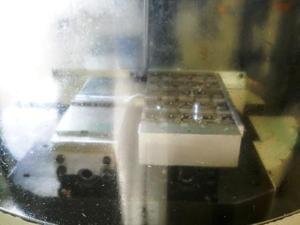

2 pallet, Pallet changer
Chip Conveyor
This machine is under power and ready to be inspected, specifications subject verification.
