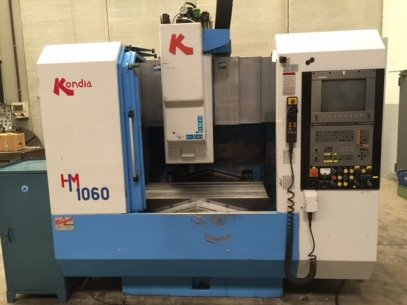

KONDIA HM 1060 MACHINING CENTER-VERTICAL CNC HEIDENHAIN TNC 410

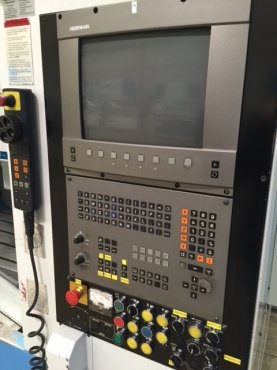

Control Heidenhain TNC 410

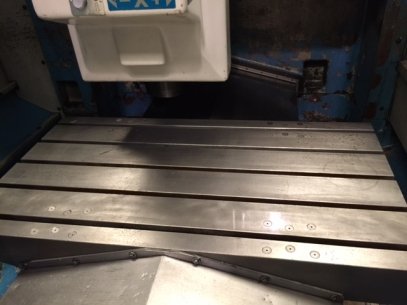

table dimensions: 1120 x 600 mm.
Nº of channels in t 5 channel 110 mm.
Spacing wide channel t 18 mm.
Table height to the floor 825 mm.
Travel Longitudinal X: 1000 mm.
Cross travel: 600 mm.
Travel Vertical Z 520 mm.
Weight Max. table 700 kgs.
Specifications:
KONDIA
Model: HM 1060
Control Heidenhain TNC 410
table dimensions: 1120 x 600 mm.
Nº of channels in t 5 channel 110 mm.
Spacing wide channel t 18 mm.
Table height to the floor 825 mm.
Travel Longitudinal X: 1000 mm.
Cross travel: 600 mm.
Travel Vertical Z 520 mm.
Weight Max. table 700 kgs.
Fast forward / axes X-Y: 24000 mm/min.
Fast forward s/axis Z: 20000 mm/min.
Cone axis milling ISO 40 / BT-40.
Speed main spindle: 100 to 6000 rpm.
Distance Max. table 660 mm.
Shaft equipped with:
· Spindle head 0.8 kW cooling system.
· Pump cooling of 2,5 kW tool.
· Hydraulic pump 1 kW.
Number of tools: 18.
Ø Max. next tool 75 mm.
Ø Max. tool AC 145 mm.
Max. length of tool 280 mm.
Weight Max. tool 6 kg.
Max. total weight tools 90 kg.
Toolholders ISO-7388/1-BT-40
Bolt for locking tool ISO-7388/2-A - BT-40-1
Pressure air 5.7 Kg. / cm2
Powerhead c. AC 7.5 kW.
Motors axes X - Z 1.8 kW.
Motor shaft and 1.3 kW.
Dimensions machine 2280 x 2270 x 2825 mm.
Building year 1998
Certified CE.

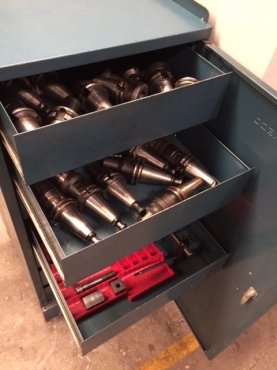

With tooling.
