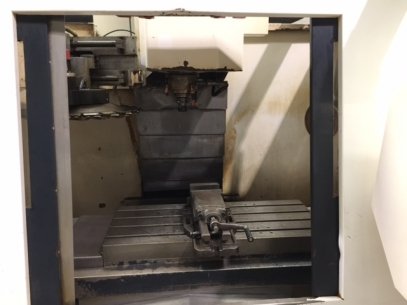

Machining Center: Kryle (English manufacturer)
Model: VMC 700F

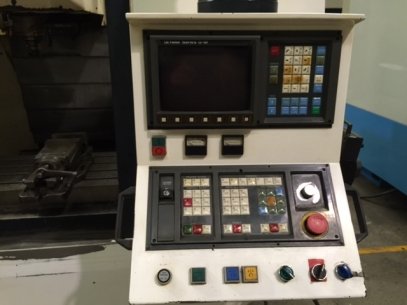

Control: FANUC OM
X Axis table travel: 700 mm
Y Axis travel: 450 mm
Z Axis travel: 450 mm
Spindle nose to table: 85-535 mm
Spindle centre to column: 460 mm
Table size: 1000x480 mm
Maximum table load: 1000 kg
Automatic tool change type: Armless
Number of tools: 20
Specifications:
Machining Center: Kryle (English manufacturer)
Model: VMC 700F
Control: FANUC OM
X Axis table travel: 700 mm
Y Axis travel: 450 mm
Z Axis travel: 450 mm
Spindle nose to table: 85-535 mm
Spindle centre to column: 460 mm
Table size: 1000x480 mm
Maximum table load: 1000 kg
Automatic tool change type: Armless
Number of tools: 20
Motor speed range (rpm): 80-8000
Shank type: BT 40
Front bearing diameter: 90mm
Rapid traverse X,Y,Z: 30M per minute
Cutting feed rate: 1-30.000 mm per minute
Manual feed rate: 1-1260 mm per minute
T slot spec. width x No x pitch: 18mm x 4 x 100mm
Maximum tool diameter: 110 mm
Maximum tool length: 250 mm
Maximum tool weight: 4 kg
Tool to tool time: 5 seconds
Chip to chip time: 9 seconds
Pull stud type: MAS 403-1
Motor Main spindle drive: AC 12P
X&Y axis motors: 7,5 Kw
Z axis motor: 5S/1,2 kw
Motor Tool changer: 3,0 S
Machine height: 2560mm x 2400mm x 2150mm
Machine weight: 3900Kg
CE certificated
