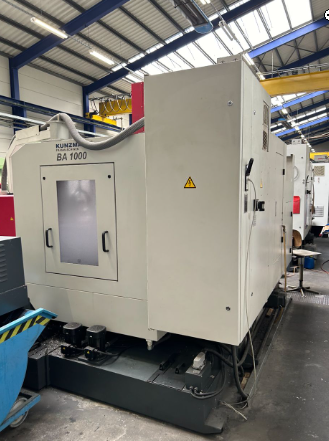

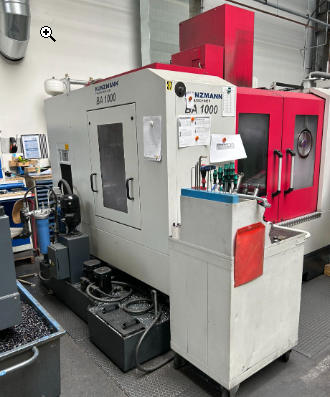

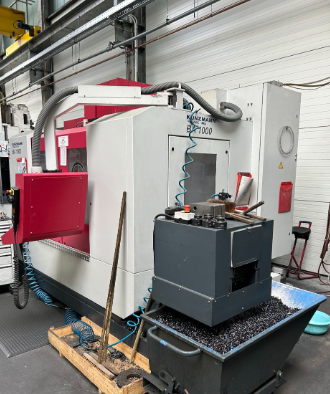

3-axis CNC machine (VMC)
KUNZMANN - BA 1000
Linear guideways in X + Y Axis
Flatt guideways in Z Axis
Grinded ballscrews 40 + 50 mm
New price EUR 140.000
X - Travel: 1020mm
Y - Travel: 620mm
Z - Travel: 610mm
Table Length: 1200mm
Table Width: 610mm
Table load: 850
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 30000mm/min.
Feed rate Z-Axis: 24000mm/min.
Spindle Taper: 40ISO/Bt/Mk

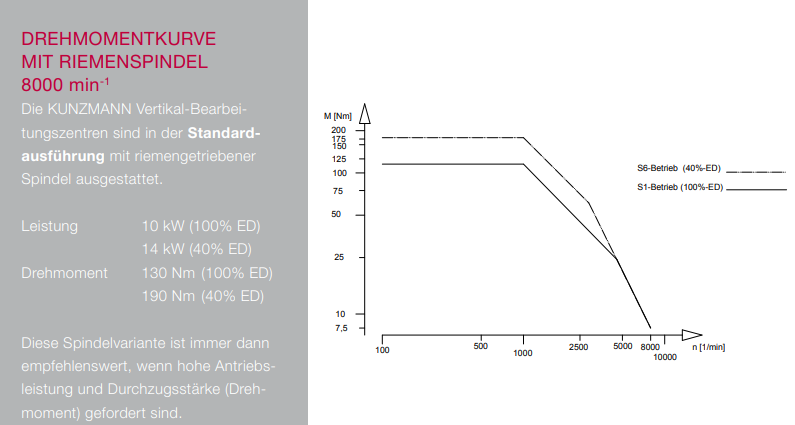

Power on spindle: 14kW
Speeds / ranges: 8000Rpm
ATC / revolver: 32
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes

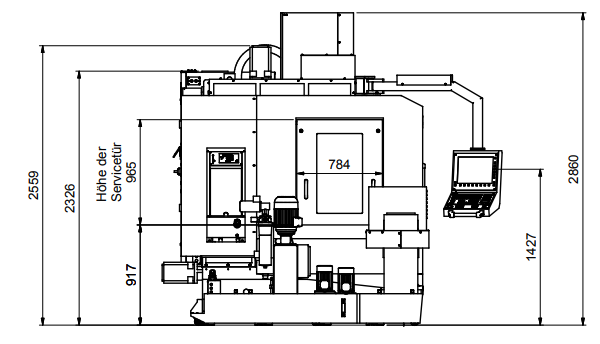

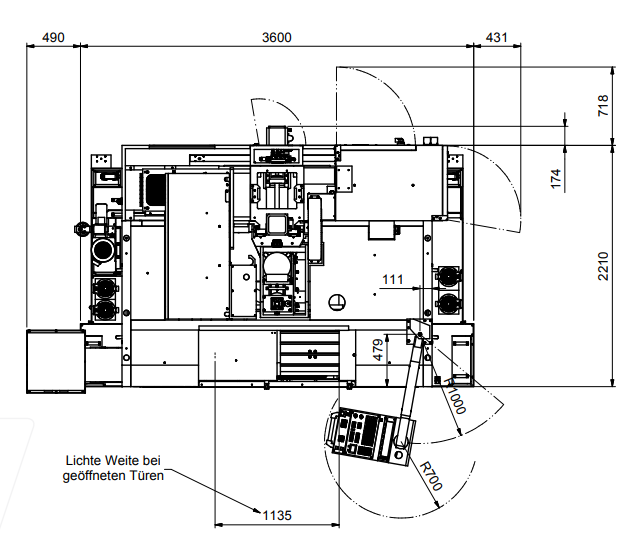

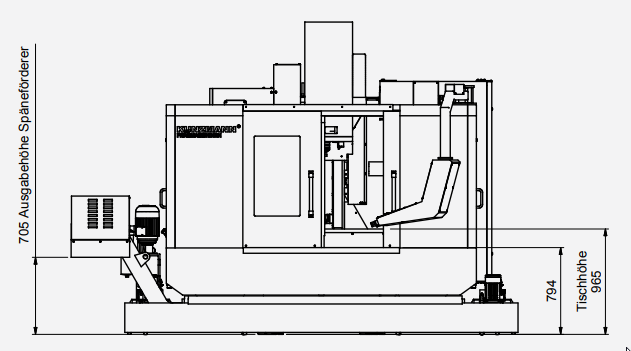

Length: 3600mm
Width: 2210mm
Height: 2680mm
Weight: 8450kg
