LEADWELL, V-40M, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:LEADWELL
Model:V-40M
YOM:2008
Location:Netherlands, BABBERICH
Price:On request
Stock No:8636
Control:CNC
ID:AS29801

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

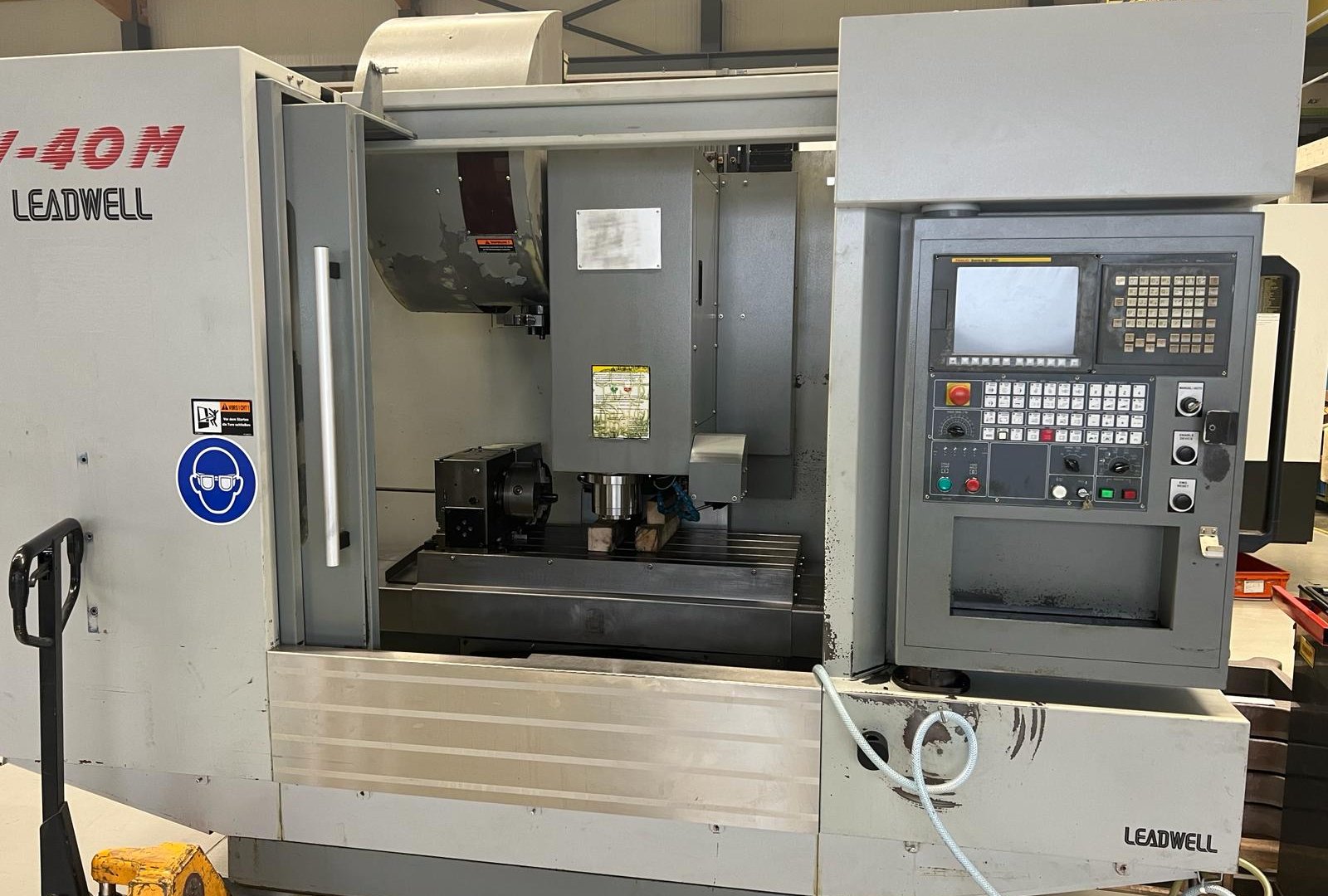

3-axis CNC machine (VMC)
Leadwell - V-40M

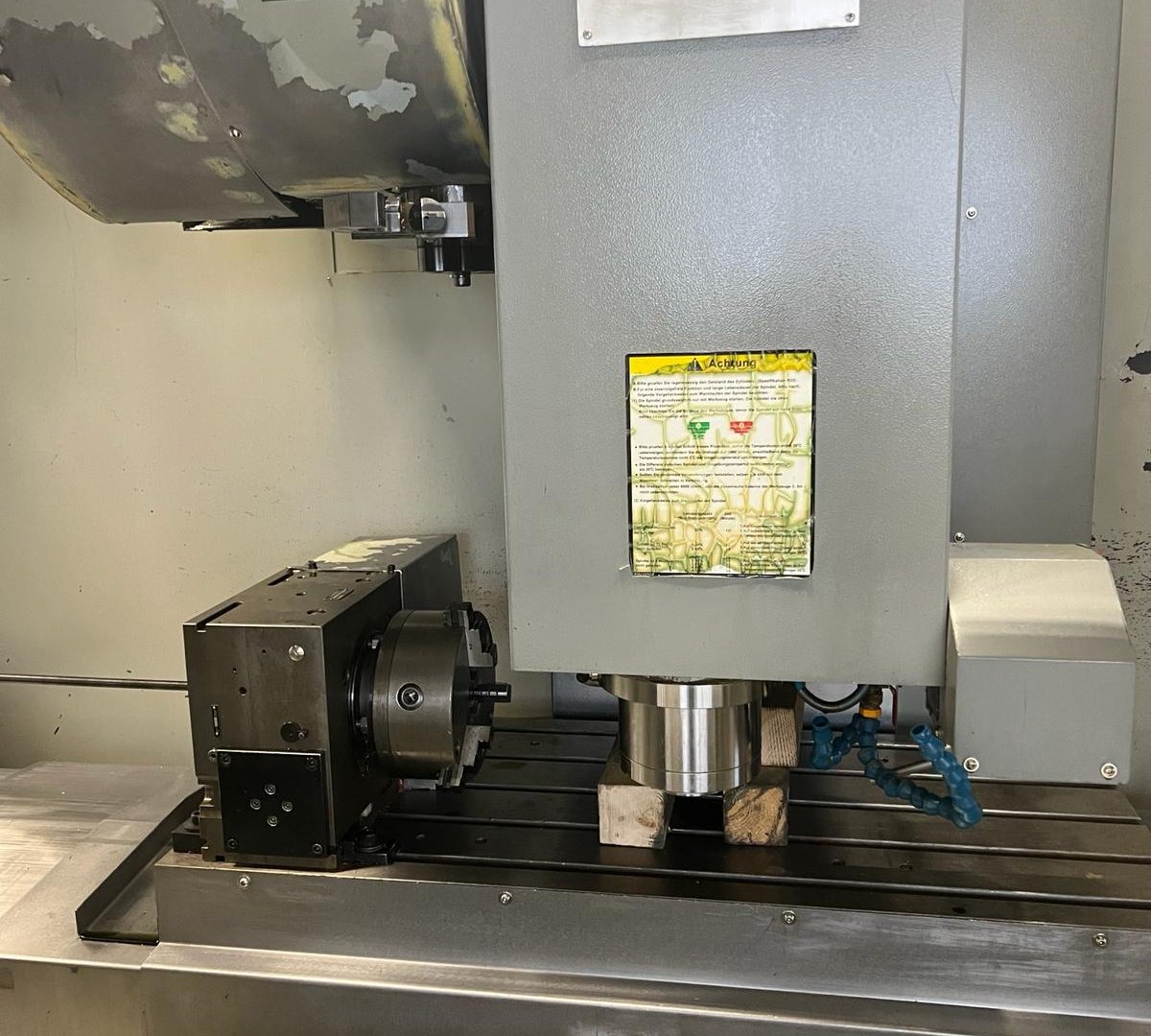

Walter 4e axis with tailstock 0.001
Coolant system ikz 30 Bar
Filtration system

X - Travel: 1020mm
Y - Travel: 510mm
Z - Travel: 510mm
Table Length: 1200mm
Table Width: 510mm
Table load: 500
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 15000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 12kW
Speeds / ranges: 10000Rpm
ATC / revolver: 20
Coolant through spindle / Bar:30
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3000mm
Width: 2800mm
Height: 2990mm
Weight: 6500kg

Specifications:

3-axis CNC machine (VMC)
Leadwell - V-40M
Walter 4e axis with tailstock 0.001
Coolant system ikz 30 Bar
Filtration system

X - Travel: 1020mm
Y - Travel: 510mm
Z - Travel: 510mm
Table Length: 1200mm
Table Width: 510mm
Table load: 500
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 15000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 12kW
Speeds / ranges: 10000Rpm
ATC / revolver: 20
Coolant through spindle / Bar:30
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3000mm
Width: 2800mm
Height: 2990mm
Weight: 6500kg

Dealer name:

Mach4Metal Netherlands, Babberich
