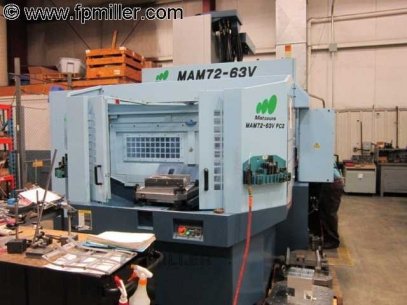

MATSUURA MAM72-63V2 (5) AXIS TRUNION CNC VERTICAL MACHINING CENTER

19.68" x 19.68" Pallet Size

880 LBS. Maximum Weight On Pallets

2 Dual Axis Rotary Pallets

TRAVELS:

29.92" -X Axis

33.26" -Y Axis

24.01"-Z Axis

220 Deg.-B Axis

360 Deg.-C Axis

60 ATC Tool Changer

240 ATC (Max) Tool Changer Expandable

1.1 Seconds Tool Changer Time

#40 Spindle Taper

30 HP Main Spindle Motor

12,000 RPM Spindle Speed

1969 IPM Rapid Traverse (X,Y.Z)

33,000 LBS. Machine Weight

132" x 246" x 125"H Approximate Floor Space Dimensions

4805 Cutting Hours (Used for prototype work on Aluminum and Mild Steel)


EQUIPPED WITH:


GTECH 30i Fanuc (5) Axis CNC Controls

1000 PSI Coolant Thru Spindle

Tilting Trunion Table

Full 4TH Axis (360,000 Deg) on B Axis

BT Spindle Taper

Micro Fine Chip Conveyor

Data Server
