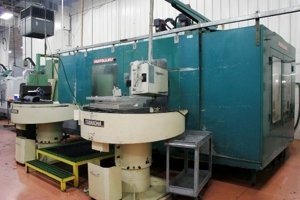

Twin Spindles, (2) 30 Position Tool Changers, (2) Tsudakoma Manual Pallet Changers, Full Enclosure, Heavy Duty Box Way Construction
Specifications:
Travel: X-Axis 60.0"
Y-Axis 30.5"
Z-Axis 29.5"
Table Size 67" x 30"
Spindles 2
Spindle Speed 25 - 4500 RPM
Spindle Taper BT45
Spindle Nose to Table Top 8" - 37.5"
Spindle Motor 15 / 10 HP AC (2)
Distance Between Spindles 32"
Tools 30 (2)
Table Load Capacity 5500 lbs.
Rapid Traverse Rates (X & Y / Z) 470 / 395 IPM
Max Tool Diameter 3.74" / 7.87"
Max Tool Length 15.74"
Max Tool Weight 26.4 lbs.
Machine Dimensions (L x W x H) 190" x 150" x 148"
Machine Weight 44,000 lbs.
FEATURES:
FANUC 6MB CNC CONTROL
9" Monochrome CRT
Twin Spindles
(2) 30 Position Tool Changers
(2) Tsudakoma Manual Pallet Changers
Full Enclosure
Heavy Duty Box Way Construction
