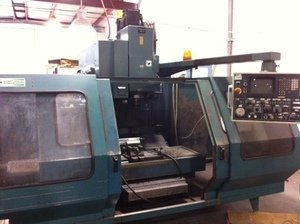

30 Tool Magazine, Table Chip Guards, Yellow Operation End Light, Spindle Chiller Unit, Heavy Duty Box Way Construction
Specifications:
Travel: X-Axis 30"
Y-Axis 16"
Z-Axis 19"
Table Size 45.3" x 16.1"
Spindle Speed 25 - 4500 RPM
Spindle Taper BT 40
Spindle Nose to Table Top 5.9" - 25"
Spindle Motor 7.3 HP AC
Tools 30
Table Load Capacity 1100 lbs.
Rapid Traverse Rates (X & Y / Z) 472 / 394 IPM
Max Tool Diameter 2.99"
Max Tool Weight 22 lbs.
Machine Dimensions (L x W x H) 120" x 118" x 106"
Machine Weight 11,000 lbs.
FEATURES:
FANUC 11M CNC CONTROL
9" Monochrome CRT
RS232 Interface
30 Tool Magazine
Table Chip Guards
Yellow Operation End Light
Spindle Chiller Unit
Heavy Duty Box Way Construction
