AS IS, F.O.B TRUCK, COLORADO -- MAKE OFFER!!

General Specifications As Per Brochure

Specifications:
X-AXIS TRAVEL: 23.62"
Y-AXIS TRAVEL: 16.14"
Z-AXIS TRAVEL: 18.5"
PALLET TOP TO SPINDLE END: 5.9" TO 24.4"
SPINDLE SPEEDS - (2 SPEED GEARED): 30 TO 7,000 RPM
SPINDLE MOTOR: 10 HP
SPINDLE TAPER: BT 40
CUTTING FEED RATE: 0.1 TO 196 IPM
RAPID TRAVERSE (X/Y/Z): 590/590/472 IPM
AUTOMATIC TOOL CHANGER: 20 POSITIONS
MACHINE SIZE: 146" W, 110" DEEP, 106" TALL
MACHINE WEIGHT: 9,680 LBS
EQUIPPED WITH:

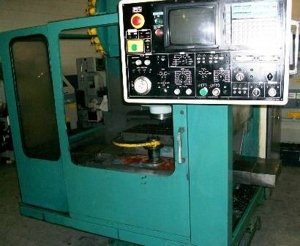

YASNAC I80 CONTROL
FULL ENCLOSURE

Machine: 84" x 111" x 96" 9,680 lbs
Chip Pan: 70" x 50" x 12" 150 lbs
Pallet Changer: 50" x 33" x 73" 500 lbs

84"x111"x96"

9,680 LBS.
