Machine ran 85% plastic so it's in excellent condition.
Specifications:

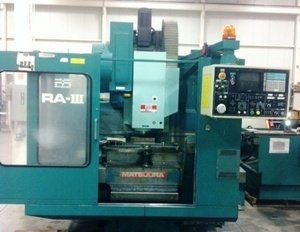

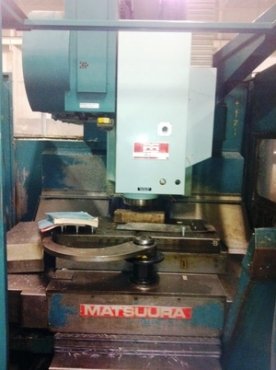

Matsuura RA-III Vertical Machining Center 2 APC
Manufacturer: Matsuura
Model: RA-III
S/N:
Year: 1990
Condition: Good
Specifications:
Approximate Machine Age: 1990
Table Size: 31.50" x 16.50"
Pallet Load 660 LBS
Pallet Change Time 8 SEC.
X-Axis Table Travel: 29.92"
Y-Axis Saddle Travel: 17.30"
Z-Axis Spindle Head Travel: 19.15"
Maximum Distance Spindle To Table: 5.70"-24.90"
Rapid Traverse Rate: X & Y 945 Z Axis 708 IPM
Spindle Taper: BT-40
Spindle Speeds: 30-8000 RPM
Spindle Drive Motor: 20 HP
Automatic Tool Changer: 30 Positions
Maximum Tool Diameter: 6.8"
Maximum Tool Length: 13.7"
Maximum Tool Weight: 22 LBS
Tool Change time 2 SEC.
Approximate Dimensions: 171" x 122" x 119"
Machine Weight 14,740 LBS
Equipped With:
EQUIPPED WITH:

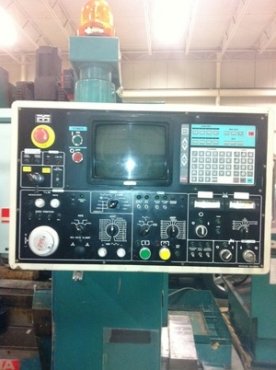

Matsuura Yasnac MX- CNC Control
2-APC Automatic Pallet Changer
30-Position ATC

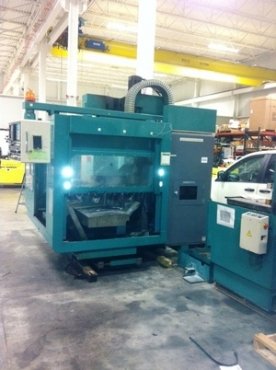

Full Enclosure
All Available Manuals
MACHINE HAVE RUN PLASTIC 85 % OF THEIR LIFE
This machine is available for demonstration under power at your convenience.
