CTS, Chip conveyor, Glass scales on A and B axis, Trunnion style table, very accurate.
Specifications:

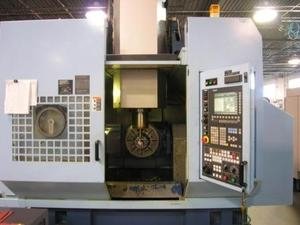

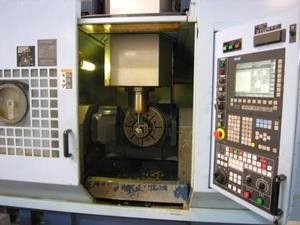

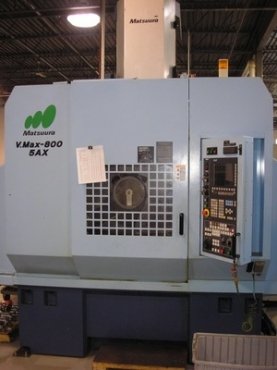

ONE USED MATSUURA 5-AXIS VMC
Model: V.Max-800-5AX
Max. part diameter: 19.68’
Max. part height: 12.76”
Diameter of table: 15.74”
Max. table load: 440 lbs.
Travels: X,Y,Z,A/C – 25” x 23.62” x 19.68” x -110 degrees, +10 degrees
Spindle RPM: 20,000
Spindle taper: BT40
Spindle HP: 30
ATC: 30 place
EQUIPPED WITH:

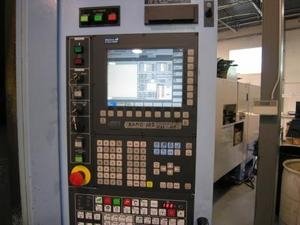

Matsuura G-Tech 840DI CNC controls, using Windows NT with 2.5 dimensional programming environment, 3D model display of finished geometry, pocket milling cycles, cutter path optimizing to avoid interference, recurring tasks stored as Macros, 128 geometry elements and 12 islands are supported, etc.

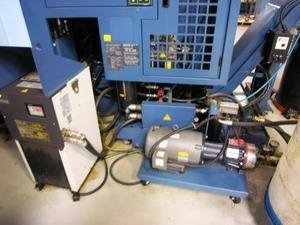

Coolant thru spindle
Chip conveyor

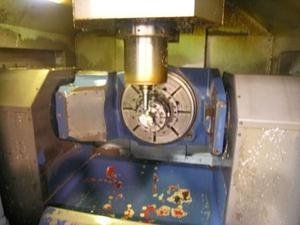

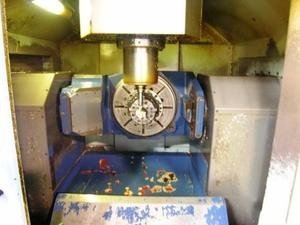

Trunnion style table
Rotary wiper on front of enclosure
