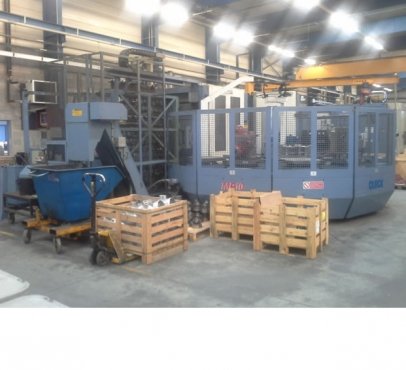

No. 01 machining center REBUILT year of construction 1997
GE FANUC CNC 16i -M
X axis travel = 1050mm Y-axis travel = 700mm Z axis stroke = 800 mm
Speed rapid XYZ 32 mt. / Min .
Guide rail movement axes ball , ball screws D = 50 P = 20
Detectors Heidenhain linear scale LB326
ISO50 tool DIN69871
Electrospindle PEM00020 OMLAT 8,000 rpm 4- speed ranges
Refrigerant high pressure 16 Center Street Bar
Rotary table mCm continues 360,000 locations , maximum diameter of rotation
1000 mm . , Maximum height 880 mm equipment . , Maximum weight of 550 Kg
Tool storage rack 148 tool places .
Tool weight 12 kg Maximum permissible , maximum length 300 mm .

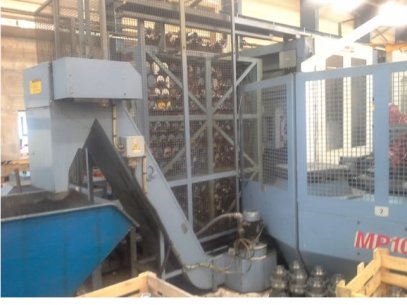

Evacuation of swarf discharge mouth scraping height 1,140 mm .
Collection tank coolant L. 700 with filter Losma DTE100 .

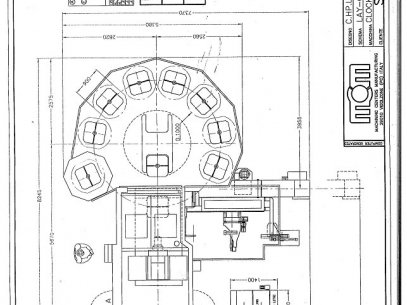

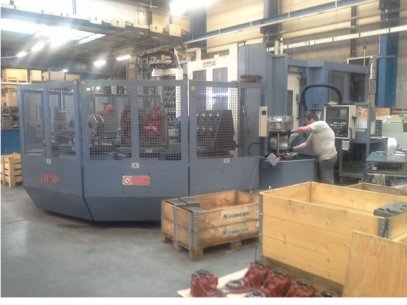

Manipulators Pallet with 10 stations , flat panel 630 x 630 mm .
# 1 Spot operator load / unload piece CNC side .
Ecological Protection and Accident Prevention .
Top cover full set for fume extractor .
Halogen lamp lighting the work area.
FANUC spindle and axis drives DIGITAL
Axis motors and spindle in the AC Brushless FANUC DIGITAL
Supervisor plant retrofitted to mCm
FESTO pneumatics , hydraulics HAWE
Color White / Blue RAL9002 RAL5014 + Standard mCm
Wiring diagrams and installation listed software logic
Manual for use and maintenance facility
Sworn appraisal of compliance with safety regulations issued by approved expert . ( Plant already CE marked by mCm )
