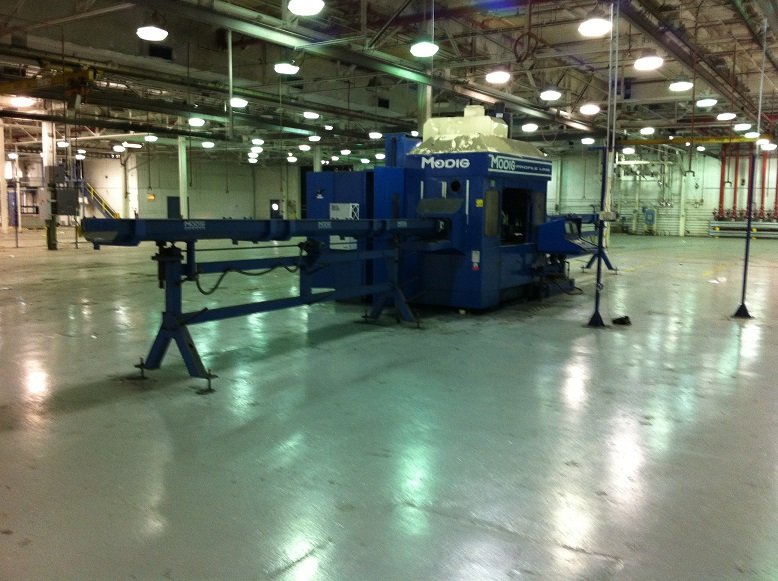

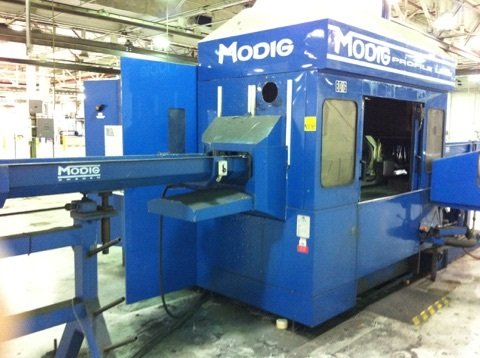

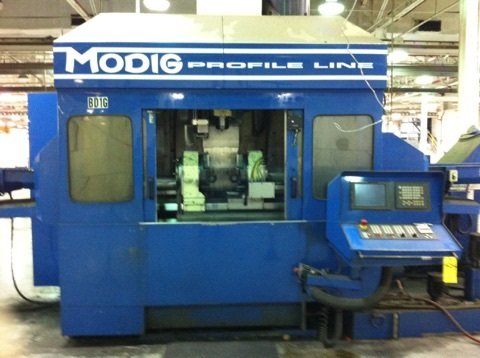

2000 Modig Profile Line 7200 Extrusion Mill - Fanuc 160iM

2000 MODIG PROFILELINE MODEL MD 7200

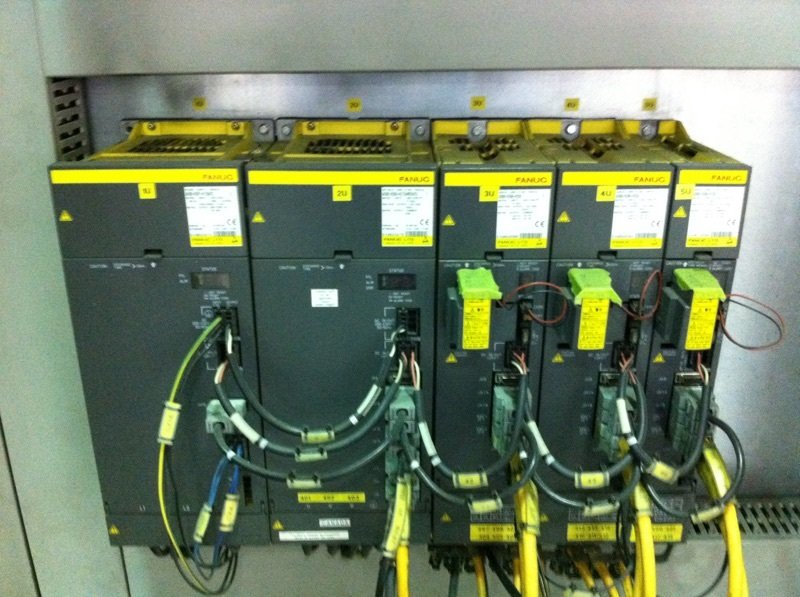

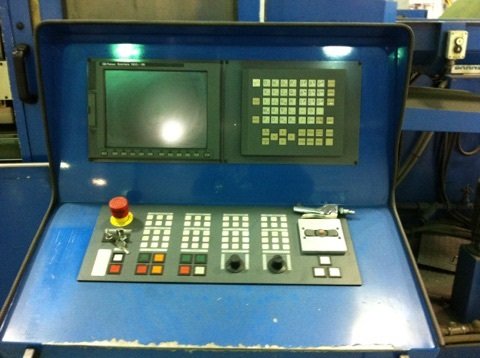

FANUC 160i CONTROL
Specifications:
Rotary Table Size: 15.74” Diameter x 7.87” Bore
Spindle Nose to Table Top (Max / Min) 25.90” / 5.90”
Distance Spindle to Center Rotary Table (Min/Max) 0 – 14.96”
Overhang Spindle to Column 15.55”
Left Rotary Table Slide Travel 39.3”
X-Axis Travel: 29.52”
Y-Axis Travel: 15.87”
Z-Axis Travel: 19.68”
Rapid Traverse (X&Y/ Z) 945 / 787 ipm

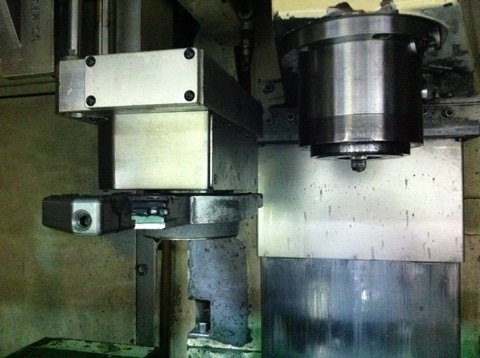

Number of ATC Stations: 24 stations
Spindle Taper CAT 40
Spindle Motor: 20 hp.
Maximum Spindle Speed 10 – 20,000 rpm

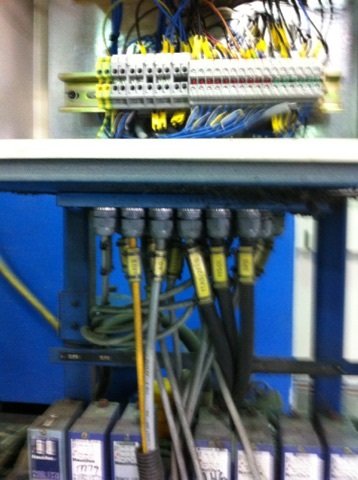

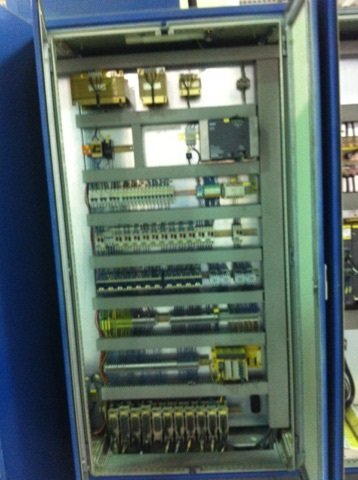

Machine Electrics: 200/3Ph/60Hz
Machine Weight: 19,000 lbs. (Approx)
Equipped With:

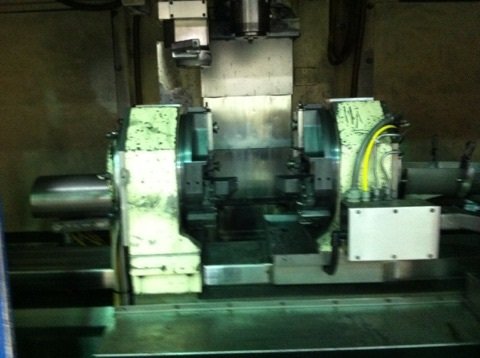

Dual 15” Rotary Tables
Barnes Coolant System

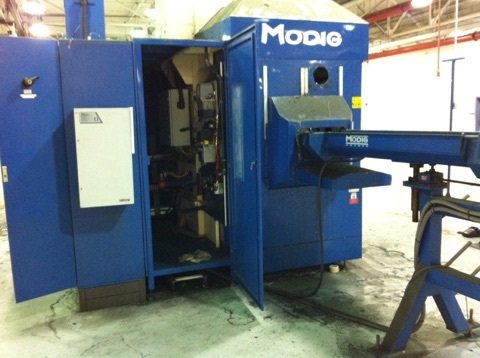

Full Enclosures
2 MB Memory
RISC Processor
CD ROM Drive & 3.5” Drive
Feed Forward Control
Built in PC (WIN NT)
Crash Protection
2-Outside Work Supports
Manuals
Features:

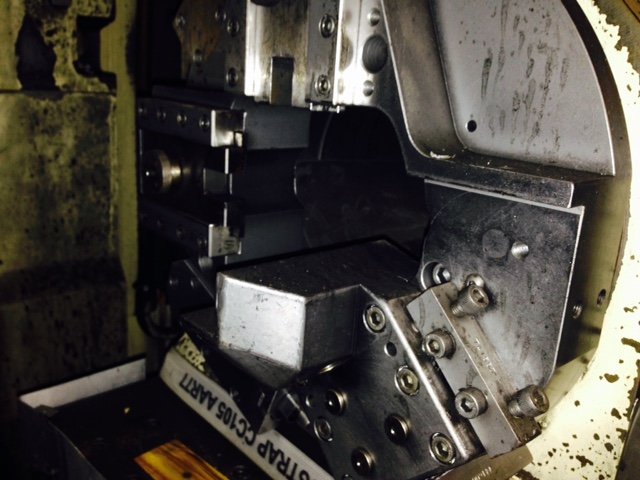

5th axis Rotary Table is mounted on a set of linear guide ways on machine table. The Rotary Table can be moved in the longitudinal direction allowing for the part to be fed through the right Rotary Table to exact lengths +- .000787”. When length is set, both tables lock to stabilize the work piece while machining is done. There are work supports on both ends of the longitudinal travels. New cost was over $940,000.00
VIDEO: https://youtu.be/91RUMLmt7SY

19000 lbs.
