In excellent condition. It ran only plastic parts.
Specifications:

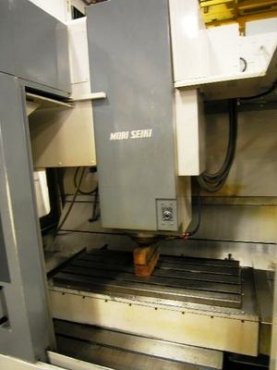

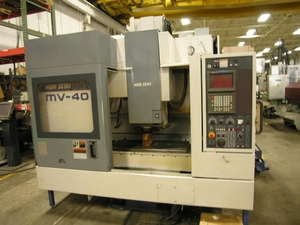

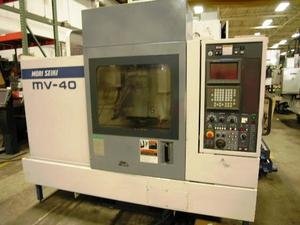

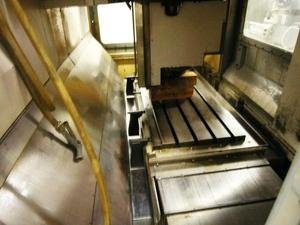

ONE USED MORI SEIKI Md. MV-40B VMC

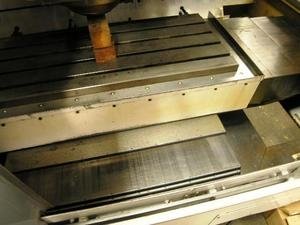

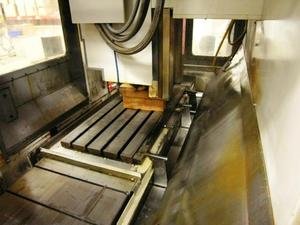

Table Size: 43.3" x 17.7"
Table Load 1540 LBS
X-Axis Table Travel: 31.5"
Y-Axis Saddle Travel: 16.14"
Z-Axis Spindle Head Travel: 20.8"
Maximum Distance Spindle To Table: NA
Rapid Traverse Rate: 590 IMP Z / 787 IMP X,Y
Spindle Taper: CAT-40
Spindle Speeds: 8,000 RPM
Spindle Drive Motor: 15/10 HP

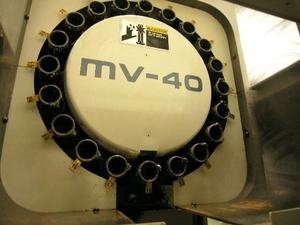

Automatic Tool Changer: 20 Positions
Maximum Tool Diameter: NA
Maximum Tool Length: NA
Maximum Tool Weight: NA
Chip To Chip Time 3.8 SEC
Tool Change time 2.9 SEC
Approximate Dimensions: 101" x 101" x 109.5"
Machine Weight 13,310 LBS
Equipped With:
Mori-Seiki MV-40B
Vertical machining center with 8,000 rpm direct drive spindle.
31.5" X travel; 16.1" Y; 20.1" Z.
20 tool ATC. CAT 40 spindle.
Max tool dia 3.15"; 9.8" length; 17.6 lbs.
Technical memory random tool selection.
Tool change 1.5 sec tool-to-tool; 5.2 sec chip-to-chip.
Rigid tapping up to 4,000 rpm.

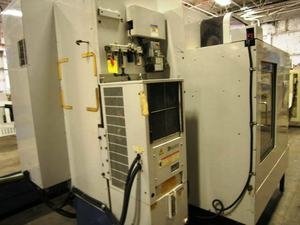

Rapids X & Y 787 ipm; Z 590. Cutting rate .0001-197 ipm. OilMatic oil temp control KTVM-6A-LM2.

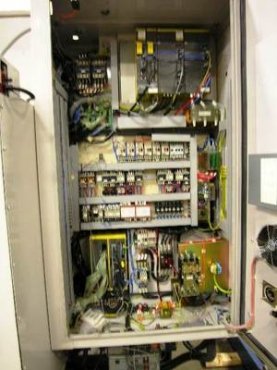

Showa way lube system. RS 232 port. Installation, Maintenance, Parts list 1 & 2 Manuals and Electrical with Parameters for MSC 516 ( Fanuc 16M)
