General Specifications As Per Brochure:
Control Fanuc 11M
TABLE DIMENSIONS 43.3" x 13.8"
X-AXIS 30"
Y-AXIS 13.8"
Z-AXIS 17.7"
DIST. SPINDLE NOSE TO TABLE TOP 5.91" - 23.62"
DIST. SPINDLE CENTER - COLUMN FRONT 15"
DIST. TABLE CENTER COLUMN FRONT 9.843" - 21.85"
ALLOWABLE LOAD ON TABLE 1,102 LBS.
SPINDLE MOTOR 7.4 HP/10.1 HP
MIN. AXES OUTPUT/INCREMENT .0001"
SPINDLE SPEED 130 - 6,000 RPM
TOOL SHANK MAS BT-40
AUTOMATIC TOOL CHANGER 20 POSITION (SIDE MOUNT)
MAX. TOOL DIA. 4.9"
MAX. TOOL LENGTH 9.8"
VOLTAGE 220/3/60
LOAD 24.0 KVA
MACHINE DIMENSIONS 204.8" x 133.5"
OVERALL MACHINE HEIGHT 98.4"
MACHINE WEIGHT 14,550 LBS.
Equipped With (must be verified by buyer):
CHIP CONVEYOR
COOLANT TANK/PUMP

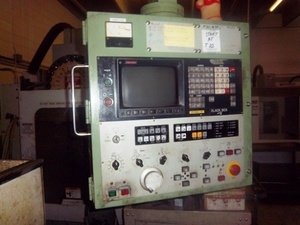

Fanuc 11M control
TABLE ENCLOSURE
WORK LIGHT
OIL SKIMMER
RS232 TAPE READER
