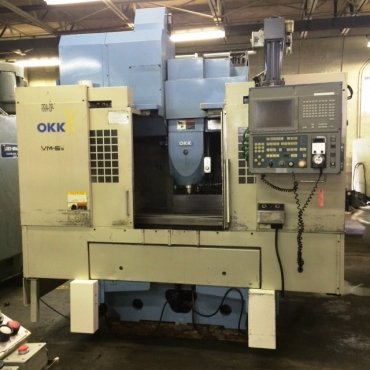

OKK VM5-II 50 TAPER CNC 3-AXIS VERTICAL MACHINING CENTER
NEW 2001
Specifications:
OKK VM5-II 50 TAPER CNC 3-AXIS VERTICAL MACHINING CENTER
SERIAL NUMBER 601 NEW 2001
GENERAL SPECIFICATIONS:
Table size 41"x22"
Max. Table Load 1760 Lbs
Spindle Nose to Table Top 5.9"-25.9"
X Axis Travel 40.15"
Y Axis Travel 20.08"
Z Axis Travel 20.08"
Rapid traverse rate X, Y Axes 1181 IPM
Rapid traverse rate Z Axis 787 IPM
Spindle speeds (2 Speed Geared) 25-8000 RPM Spindle Taper Cat 40 Spindle Motor 25 HP Cutting Feed Rate 0.1-393 IPM Coolant thru Spindle 1000 PSI Tool Changer capacity 20 Stations Max. tool weight 20 Lbs Machine weight (approx.) 16,500 Lbs Machine dimensions 115"x100"x112"H
EQUIPPED WITH:
OKK Neomatic Mitsubishi M635 CNC Control RS-232C Port Interface for DNC Operation Coolant thru Spindle (less tank & pump) Rigid Tapping (Synchronous/Solid Tapping) Spindle Oil Cooler, Internal Chip Augers with Turbo Chip Conveyor Auto Lube System Fully Enclosed Guarding All Available Manuals
