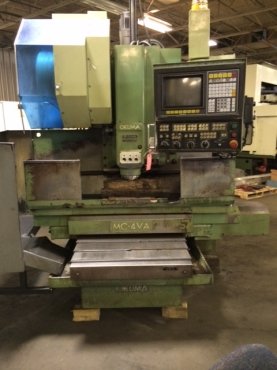

OKUMA MC4VA VERTICAL MACHINING CENTER WITH OSP5000M-G CONTROL

USED OKUMA MC4VA VERTICAL MACHINING CENTER WITH OSP5000M-G CONTROL
S/N 0953
Late 80’s

SPECIFICATIONS:

X-AXIS TRAVEL: 25.59"
Y-AXIS TRAVEL: 16.14"
Z-AXIS TRAVEL: 17.72"
TABLE SIZE: 39.37" X 16.14"
TABLE LOAD CAPACITY: 1100 LBS
SPINDLE TAPERED BORE: NT NO. 40
SPINDLE SPEEDS: 40 - 4,000 RPM
SPINDLE MOTOR: 10 HP
CUTTING FEED RATES: 1 TO 4000 MM/MIN
TOOL POSITIONS: 20 POSITION ATC
MAX TOOL DIA/LENGTH: 4.5" / 15"

Overall Size, Approximate: 103"(LR) X 77"(FB) X 98"(H)
