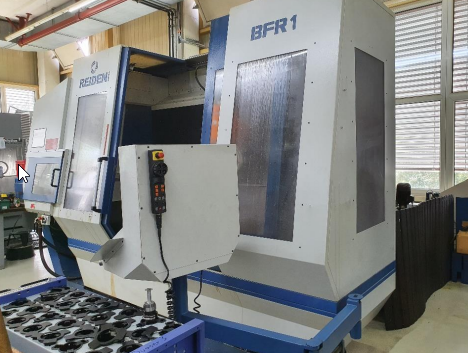

REIDEN, BFR 1, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:REIDEN
Model:BFR 1
YOM:2007
Location:Netherlands, BABBERICH
Price:On request
Stock No:7401
Control:CNC
ID:AS29394

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

5-axis CNC machine (VMC)
Reiden - BFR 1
X - Travel: 1200mm
Y - Travel: 600mm
Z - Travel: 700mm
A - Axis: - 180 to + 180°
B - Axis: - 90 to + 90°
Table load: 800
Table Ø: 800mm
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 20000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 25kW
Speeds / ranges: 6300Rpm
ATC / revolver: 72
Coolant true spindle / Bar:20
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 4400mm
Width: 4000mm
Height: 2970mm
Weight: 9000kg

Specifications:

5-axis CNC machine (VMC)
Reiden - BFR 1 X - Travel: 1200mm
Y - Travel: 600mm
Z - Travel: 700mm
A - Axis: - 180 to + 180°
B - Axis: - 90 to + 90°
Table load: 800
Table Ø: 800mm
Feed rate X-Axis: 20000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 20000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 25kW
Speeds / ranges: 6300Rpm
ATC / revolver: 72
Coolant true spindle / Bar:20
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 4400mm
Width: 4000mm
Height: 2970mm
Weight: 9000kg

Dealer name:

Mach4Metal Netherlands, Babberich
