High precision 3-axis CNC vertical machining center

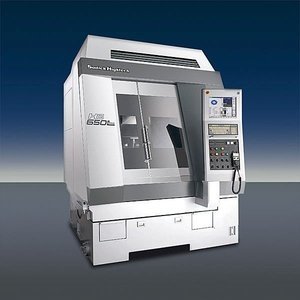

The Sodick dynamic linear technology comes into operation with the new Sodick high-speed milling machine HS650L as well.

The very high specification for the HS650L results in extremely high levels of accuracy, far beyond those normally associated with high speed milling, making it particularly appropriate for mould and die applications which call for maximum precision and surface quality, for example in the optical and electronic communication sectors.

This high precision, linear motor drive machining centre offers the high rigidity, accuracy and performance that customers have come to expect of the smaller HS430, but with a larger table, extended stroke and open height, increased maximum tool length, and double the linear motor output power.

To ensure that the very high levels of dynamics and precision can be applied optimally to work-pieces, the HS650L machine bed features a cast construction for rigidity and stability – as evidenced by the machine weight of 7,200kg. However, while the machine itself offers solidity and strength, the software to operate it is lightning fast state-of- the-art technology, using the Sodick Motion Control closed regulating system which ensures that impulses from the direct measuring system are sent via the CNC core in real time, without detours, directly to the drive regulator.
