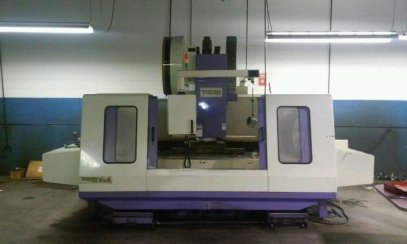

TAKUMI V-15A VERTICAL MACHINING CENTER
1998 Takumi V-15A
S/N HO552
Control Mitsubishi 520AM
Table Size 27.8" x 65"
Maximum Table Load: 2,640 lbs
Travels:
X-Axis Travel: 57.1"
Y-Axis Travel: 27.6"
Z-Axis Travel: 27.6"
Spindle Nose to Table Top: Minimum 7.9" - Maximum 35.4"
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Main Motor (HP): 30 hp
Tool Changer Positions: (Side Mount)24 ATC
Rapid Traverse Rate, X&Y: 560 / Z: 480
Equipped With:
Dimensions: 194" x 122" x 182" High
Machine Weight: 30,800 Lbs.
24-Position Side Mount ATC
Solid Box Way Construction
Spindle Chiller
Remote Hand Pendant
RS-232 Port
30 HP Integrated Spindle Motor
Coolant Tank
