3-axis CNC vertical machining center for composite panels

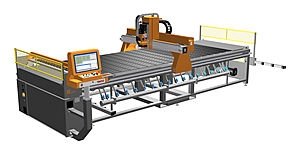

The machining centres TK 419/4 are compact machine with remarkable capacity to work. Work capacity on X: 4000 mm, work capacity on Y: 1600 mm. The machining centers TK 419/4 are characterize by vacuum beds to work sheets of aluminium, composite, titanium, etc.

Special fabricated and weined steel bed frame with finish machinend, linear recirculating ball slideways on X axis. Double precision rack and pinion axis motion driven by brushless motor with a rapid travers rate of 60 m/1'.

Bridge type gantry assembly with cast structural beams that include finish machined, "Y" and "Z" axis linear recirculating ball slideways, precision rack (Y) and recirculating ball screws (Z). Motion driven by brushless motors with a rapid traverse rate of 60 m/1' (Y) and 20 m/1' (Z).

Valves for the manual operation: the vacuum base in made up of aluminium extruded beams that can be manually activated/deactivated by opening and closing the valves.

The machine is predisposed with an suction system that can be completed with an optional exhaust fan.
