3-axis CNC vertical machining center for garage door and industrial door
Specifications:

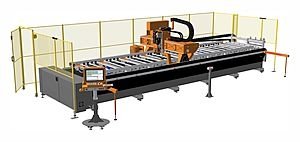

TK 429 P - 3-axis CNC vertical machining center.
Specifically designed to manufacture sectional panels, this model is equipped with a clamping system that can be rapidly adjusted to the width of the loaded panel, in order to fix panels with different widths without modifying the tooling-up of the machine. It features a fixed bar and a mobile bar that shifts along the Y axis and performs the clamping operation through pneumatic pistons.
Rollers mounted under the machining table ease the movement, allowing the simple loading/unloading of panels and the removal of chips.
This machining center is designed for drilling and conventional milling processes and also for copy-milling operations on aluminum and steel sectional profiles, for industrial heavy doors and garage doors and for sandwich panels with polyurethane foam cores for walls and coatings, etc.
In order to simplify the machining process, TEKNA has developed a software for the manufacturing of industrial doors, that is able to automatically create programs.
